Audio Assembly Replacement
- Remove the center facia panel.
- Loosen the screws.

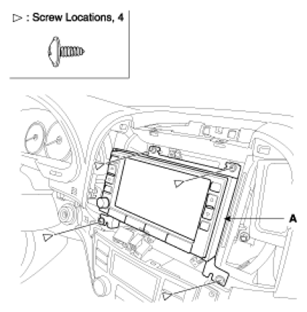

- Disconnect the audio connector and antenna cable, then remove the audio assembly (A).
Courtesy of HYUNDAI MOTOR CO.
- Installation is the reverse of removal.
NOTE:
- Make sure the connector are plugged in properly.
