Home › Hyundai › 2011 › Santa Fe SE, AWD › Repair and Diagnosis › Restraints › Air Bag, SRS › SRSCM (Supplement Restraint System Control Module) › Side Impact Sensor (SIS) › Components and Components Location › Components

Components and Components Location: Components

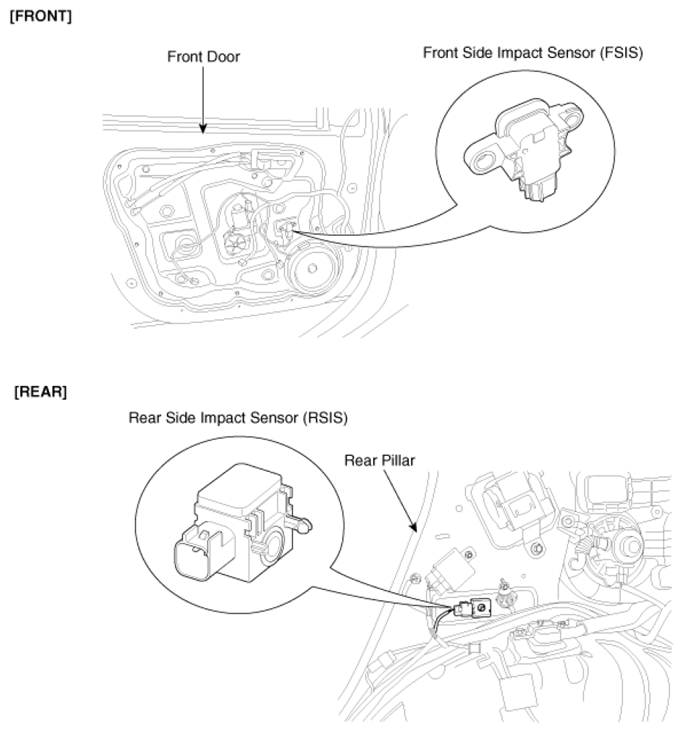

Fig 1: Identifying Front Side Impact Sensor (FSIS) And Rear Side Impact Sensor (FIS)
G06844355Courtesy of HYUNDAI MOTOR CO.
