Components (2)

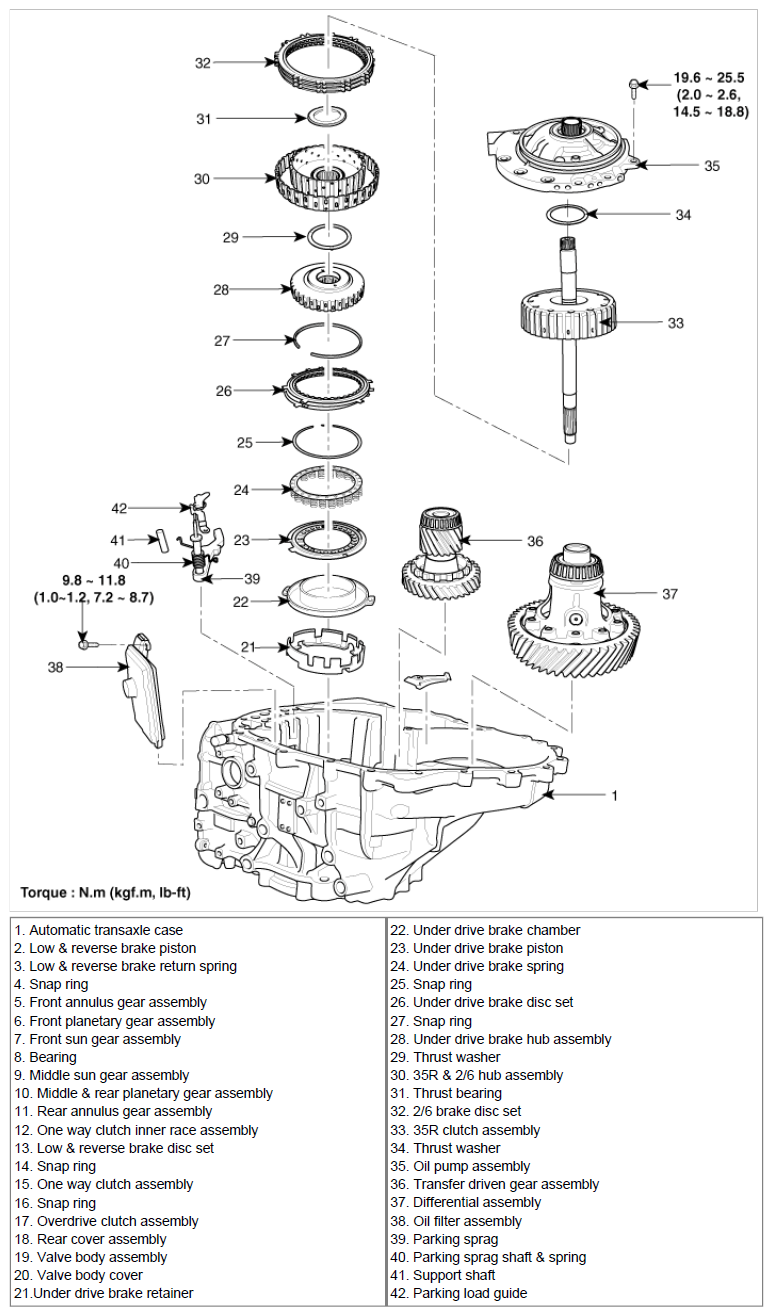

Fig 1: Automatic Transaxle Replacement Components With Torque Specifications (2 Of 2)
G06848492Courtesy of HYUNDAI MOTOR CO.
