Home › Hyundai › 2011 › Santa Fe SE, AWD › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System - A6LF2 › Shift Lever › Components and Components Location › Components

Components and Components Location: Components

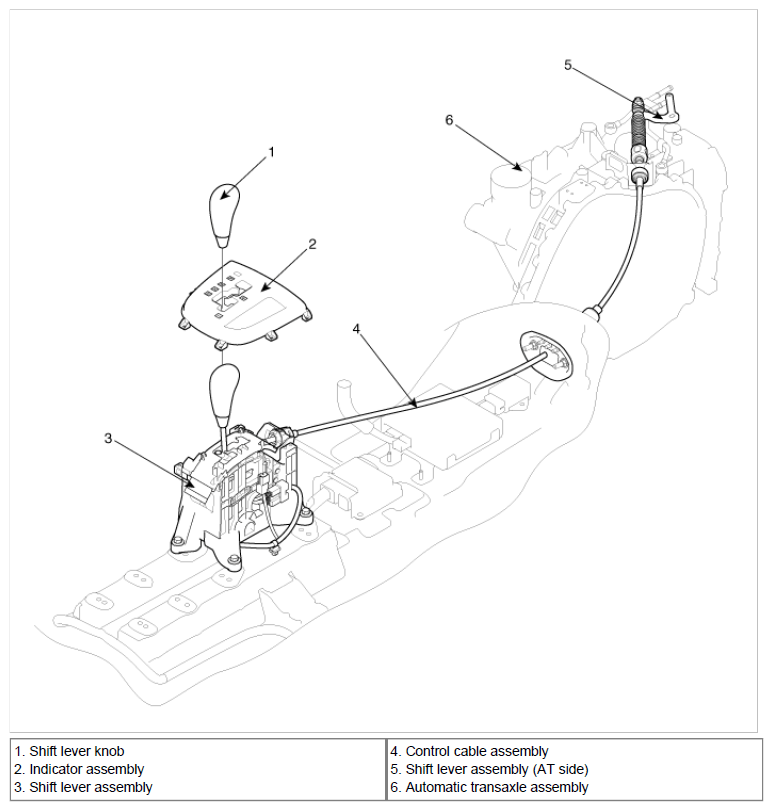

Fig 1: Identifying Shift Lever Components
G06844963Courtesy of HYUNDAI MOTOR CO.
