Armrest Replacement

Remove the console assembly.

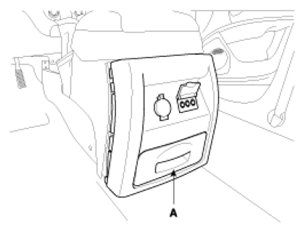

After remove the rear console cover (A).

Fig 1: Identifying Rear Console Cover
Courtesy of HYUNDAI MOTOR CO.

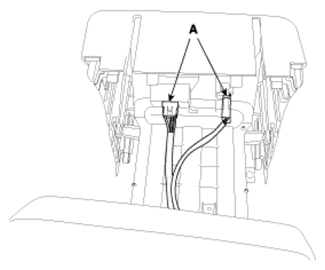

Disconnect the connector (A).

Fig 2: Identifying Connector
Courtesy of HYUNDAI MOTOR CO.

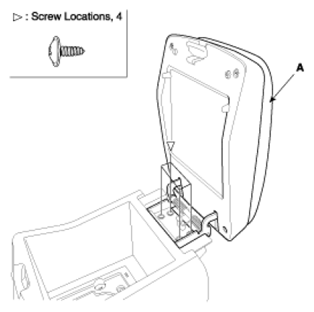

After loosening the armrest mounting nuts, remove the armrest (A).

Fig 3: Identifying Armrest
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
