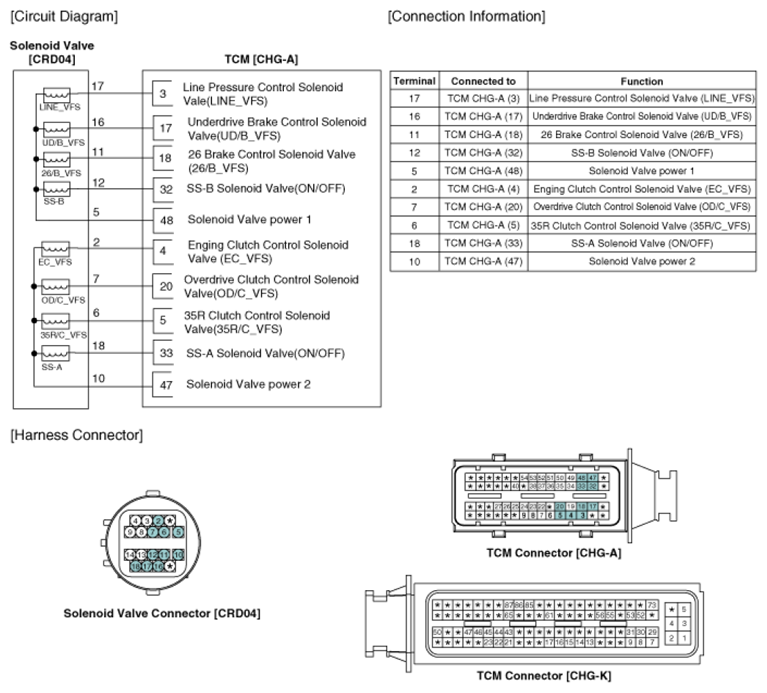

Home › Hyundai › 2011 › Sonata Hybrid › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System - HEV › Line Pressure Control Solenoid Vale › Schematic Diagrams › Circuit Diagram
