Engine Control System - 2.0L - Except HEV
›
Injector
›
Troubleshooting
›
Signal Waveform
Signal Waveform

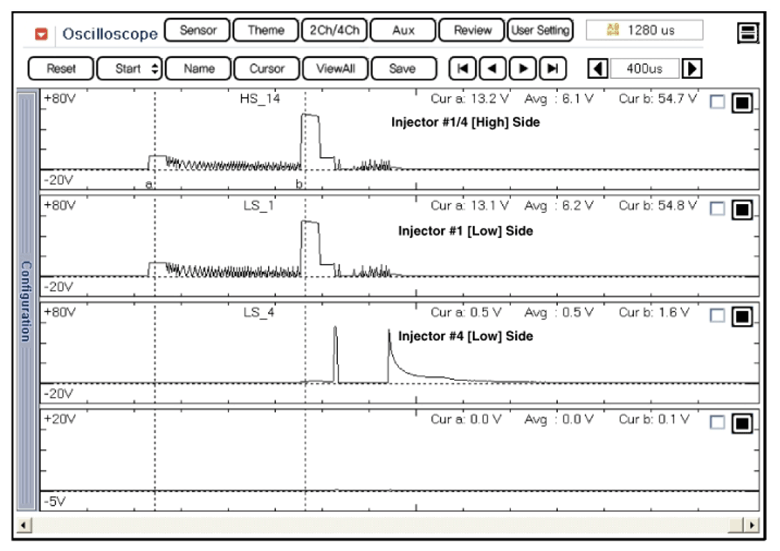

Fig 1: Screen Display - Injector Signal Waveform (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

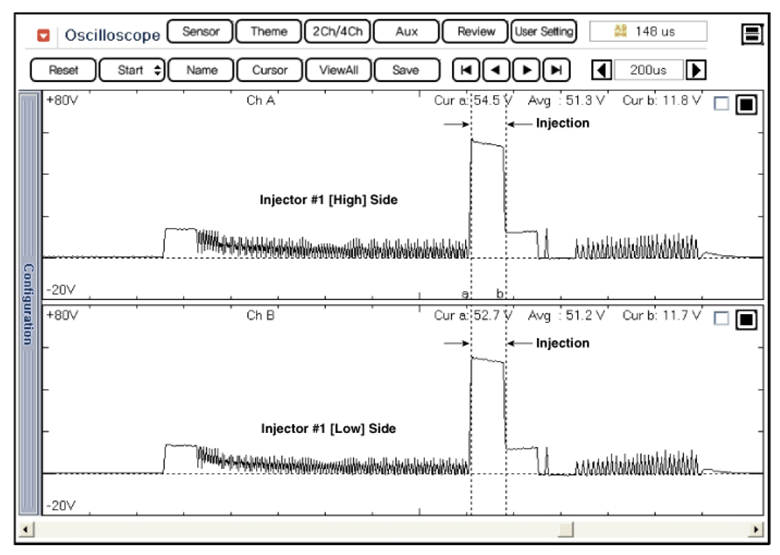

Fig 2: Screen Display - Injector Signal Waveform (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
