Variant coding

  1. Connect GDS to Data Link Connector (DLC).
  2. IG "ON"
  3. Using GDS, Perform Variant coding program. (Fig 1)
  4. IG "OFF" and wait for about 10 seconds, and then IG "ON"
  5. IG "OFF" and wait for about 10 seconds again, and then, IG "ON
  6. Go to "COMPONENT INSPECTION " procedure.

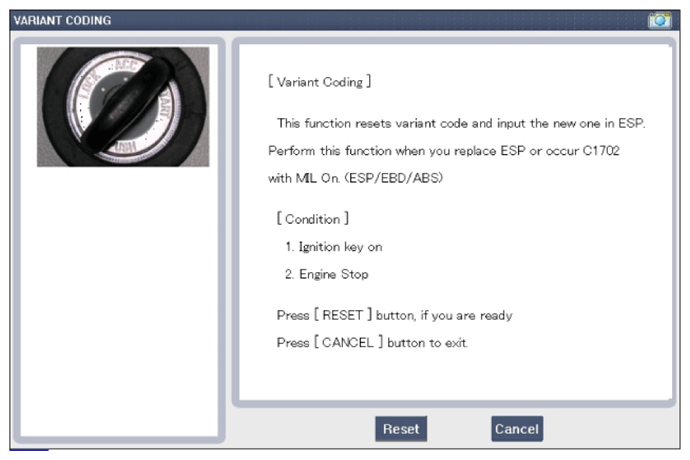

    Fig 1: Scantool Diagnostics - GDS Diagnostic Item (VARIANT CODING)
    G06872533Courtesy of HYUNDAI MOTOR CO.
