PDM Status Check

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
After IG ON, select the "PDM STATUS INFO".

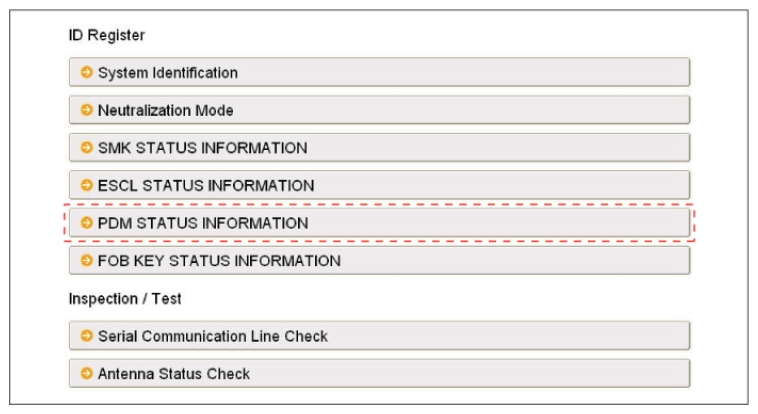

Fig 1: Selecting PDM Status Information
Courtesy of HYUNDAI MOTOR CO.

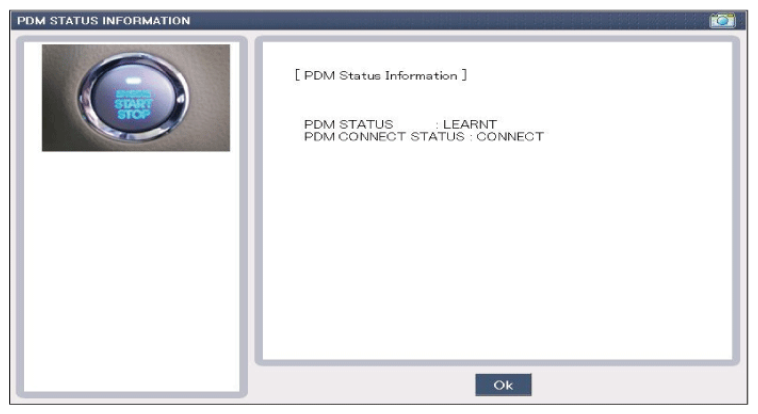

Fig 2: Display - PDM Status Information Screen
Courtesy of HYUNDAI MOTOR CO.
