Components and Components Location: Components

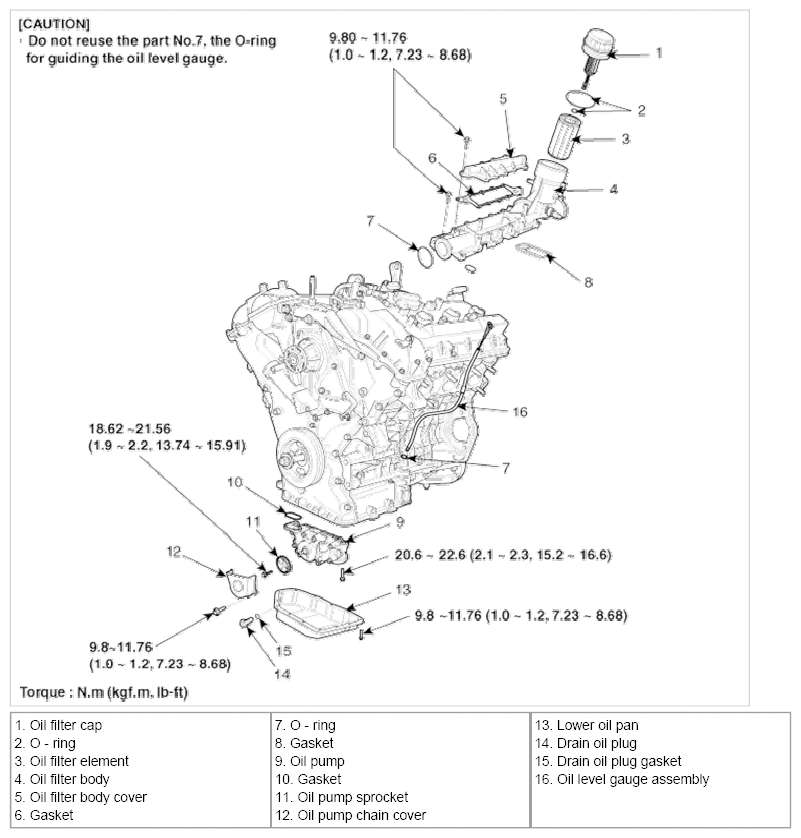

Fig 1: Lubrication System Replacement Components With Torque Specifications
G06856889Courtesy of HYUNDAI MOTOR CO.
