Repair procedures: Inspection

  1. Check the audio remote control switch (A) for resistance between terminals in each switch position.

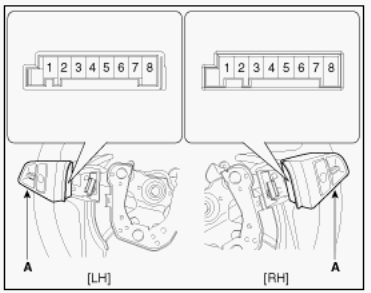

    Fig 1: Checking Audio Remote Control Switch For Resistance Between Terminals (1 Of 2)
    G08806210Courtesy of HYUNDAI MOTOR AMERICA
    Fig 2: Checking Audio Remote Control Switch For Resistance Between Terminals (2 Of 2)
    G08806211Courtesy of HYUNDAI MOTOR AMERICA
    Switch Connector terminal Resistance(± 5%)
    Seek up 5-7 (RH) 430 Ω
    Seek down 5-7 (RH) 1.11 kΩ
    Mode 5-7 (RH) 2.11 kΩ
    Mute 5-7 (LH) 3.11 kΩ
    Volume up 5-7 (LH) 4.61 kΩ
    Volume down 5-7 (LH) 6.81 kΩ
    Voice 4-5 (LH) 10.71 kΩ
    END 4-5 (LH) 18.91 kΩ
    SEND 4-5 (RH) 40.91 kΩ
