Repair procedures: Removal

Disconnect the negative (-) battery terminal.
Remove the driver airbag module.
(Refer to DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING .
Remove the steering wheel.
Refer to the STEERING COLUMN AND SHAFT

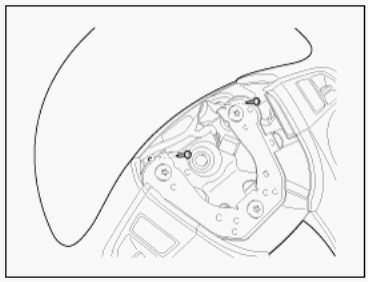

Remove 2 screws on the steering wheel.

Fig 1: Steering Wheel Screws
Courtesy of HYUNDAI MOTOR AMERICA
Remove the steering wheel cover (A) after loosening 4 screws.

Fig 2: Identifying Steering Wheel Cover And Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA
Remove the remote control switch after loosening 1 screw and disconnecting the connector. [RH]

Fig 3: Identifying Remote Control Switch Mounting Screw (RH)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 4: Identifying Remote Control Switch (RH)
Courtesy of HYUNDAI MOTOR AMERICA

[LH]

Fig 5: Identifying Remote Control Switch (LH)
Courtesy of HYUNDAI MOTOR AMERICA
