Repair Procedures: Replacement

Disconnect the negative (-) battery terminal.
Remove the crash pad lower panel.
(Refer to the "CRASH PAD ")
Remove the BCM unit and the SMARTRA unit(A).
[USA]

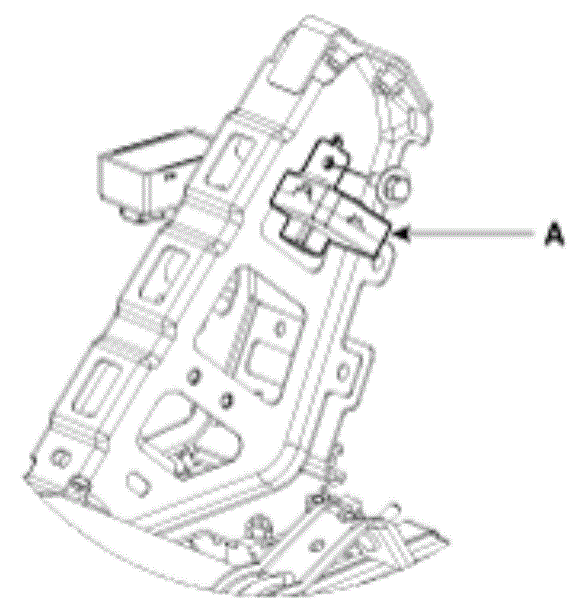

Fig 1: Identifying SMARTRA Unit (USA)
Courtesy of HYUNDAI MOTOR AMERICA
Remove the SMARTRA unit (A) from the bracket with loosening a shear bolt (B).
[CANADA]

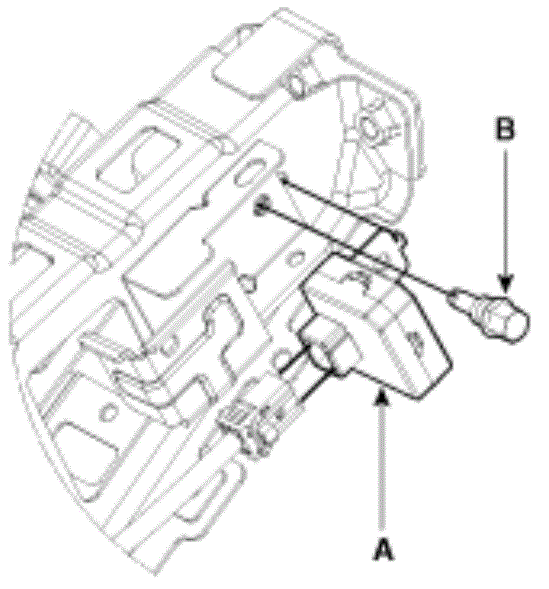

Fig 2: Identifying SMARTRA Unit And Shear Bolt (Canada)
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal procedure.
