Crash Pad Side Cover Replacement

NOTE:
  • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Put on gloves to protect your hands.
  1. Using a screwdriver or remover, remove the crash pad side cover (A).

    [Driver's]

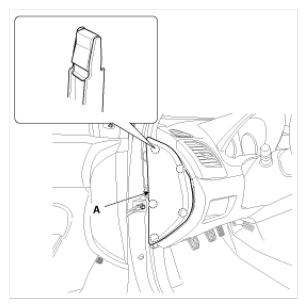

    Fig 1: Removing Crash Pad Side Cover (Driver's)
    G08805981Courtesy of HYUNDAI MOTOR AMERICA

    [Passenger's]

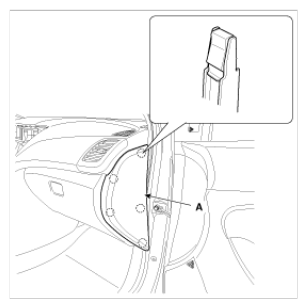

    Fig 2: Removing Crash Pad Side Cover (Passenger's)
    G08805982Courtesy of HYUNDAI MOTOR AMERICA
  2. Installation is the reverse of removal.
