Glove Box Replacement

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

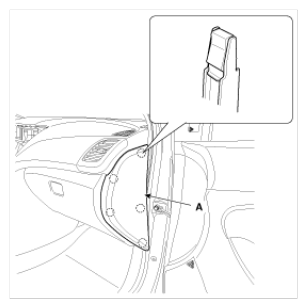

Using a screwdriver or remover, remove the crash pad side cover (A).

Fig 1: Removing Crash Pad Side Cover
Courtesy of HYUNDAI MOTOR AMERICA

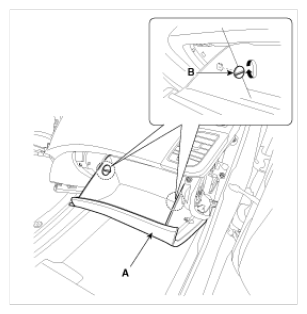

Disconnect the guide (B) from the glove box (A).

Fig 2: Identifying Guide And Glove Box
Courtesy of HYUNDAI MOTOR AMERICA

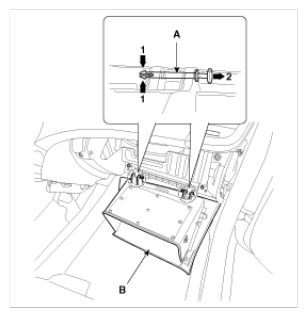

Disconnect the pin (A) and then remove the glove box (B).

Fig 3: Identifying Pin And Glove Box
Courtesy of HYUNDAI MOTOR AMERICA

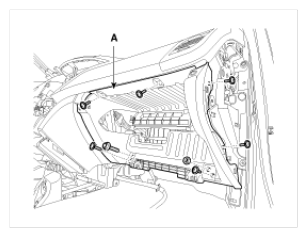

After loosening the mounting bolt, nut, screws, then remove the glove box housing (A).

Fig 4: Identifying Glove Box Housing
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- Replace any damaged clips.
