Components and Components Location: Components

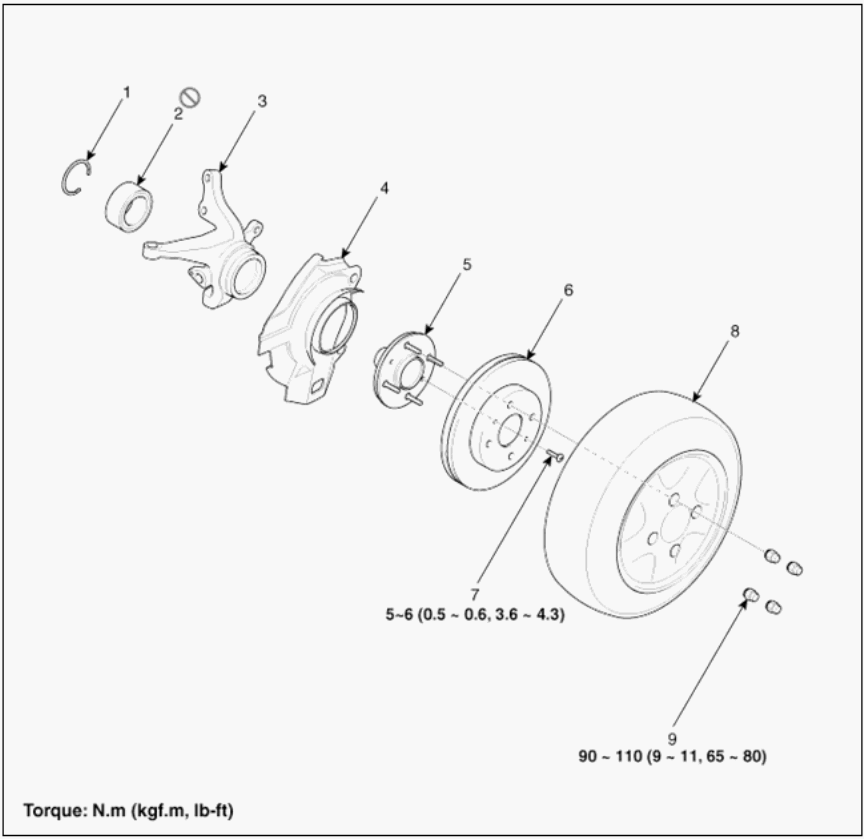

Fig 1: Front Hub / Knuckle Replacement Components With Torque Specifications

Courtesy of HYUNDAI MOTOR AMERICA

1. Snap ring	6. Wheel brake disc
2. Bearing	7. Brake disc fixing screw
3. Axle assembly	8. Wheel / Tire
4. Brake disc dust cover	9. Wheel nut
5. Wheel hub assembly
