Removal and Installation

Disconnect the battery negative terminal first, then the positive terminal.
Tightening torque

(-) terminal:

4.0 ~ 6.0N.m (0.4 ~ 0.6kgf.m, 3.0 ~ 4.4lb-ft)

(+) terminal:

7.8 ~ 9.8N.m (0.8 ~ 1.0kgf.m, 5.8 ~ 7.2lb-ft)

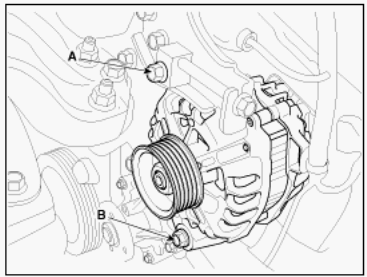

Loosen the mounting bolts (A, B)

Fig 1: Identifying Alternator Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA

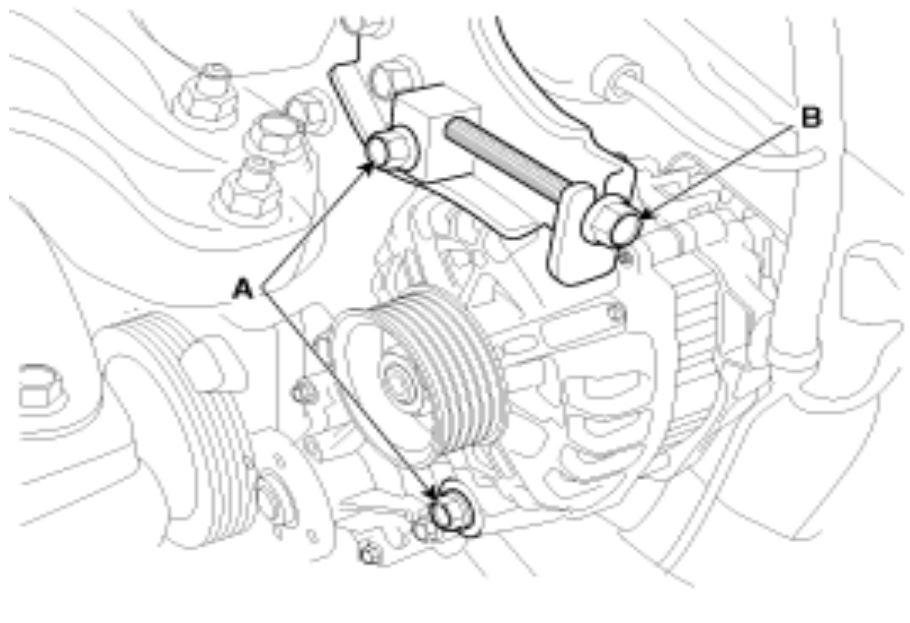

Turn the adjusting bolt (B) clockwise in loose tension.

Fig 2: Identifying Alternator Adjusting Bolts
Courtesy of HYUNDAI MOTOR AMERICA

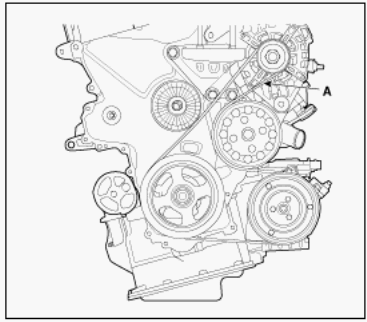

Remove the drive belt (A).

Fig 3: Identifying Drive Belt
Courtesy of HYUNDAI MOTOR AMERICA

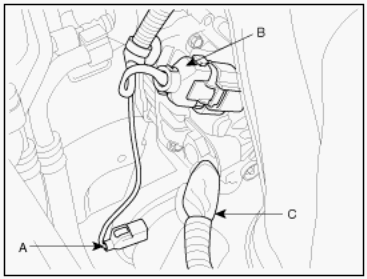

Disconnect the air compressor connector (A) and the alternator connector (B), and remove the cable (C) from alternator "B" terminal.

Fig 4: Identifying Air Compressor Connector, Alternator Connector And Cable
Courtesy of HYUNDAI MOTOR AMERICA

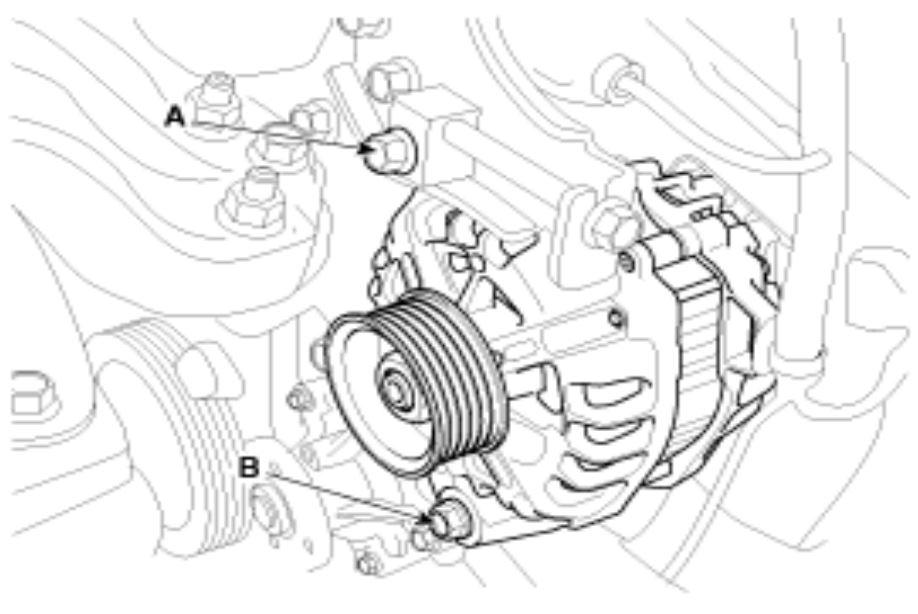

Remove the alternator (A).
Tightening torque

12mm (0.47in) bolt:

19.6 ~ 26.5 Nm (2.0 ~ 2.7 kgf.m, 14.5 ~ 19.5 lb-ft)

14mm (0.55in) bolt:

29.4 ~ 41.2 Nm (3.0 ~ 4.2 kgf.m, 21.7 ~ 30.4 lb-ft)

Fig 5: Identifying Alternator
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse order of removal.
Adjust the alternator belt tension after installation.
