Repair procedures: Inspection

Remove the fuse box cover.
Remove the starter relay (A).

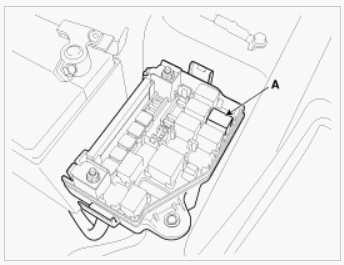

Fig 1: Identifying Starter Relay
Courtesy of HYUNDAI MOTOR AMERICA

Using an ohmmeter, check that there is continuity between each terminal.

Terminal	Continuity
30 - 87	NO
85 - 86	YES

Apply 12V to terminal 85 and ground to terminal 86.
Check for continuity between terminals 30 and 87.

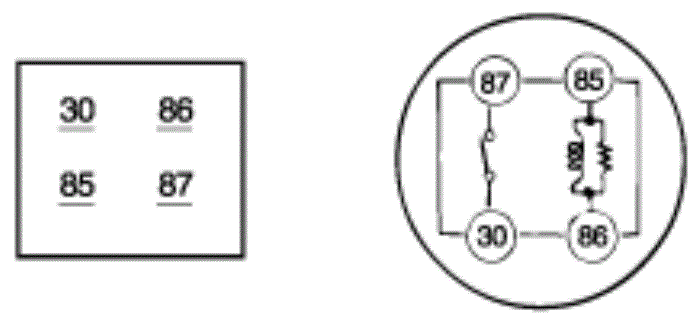

Fig 2: Identifying Terminals
Courtesy of HYUNDAI MOTOR AMERICA
If there is no continuity, replace the starter relay.
Install the starter relay.
Install the fuse box cover.
