Components Location

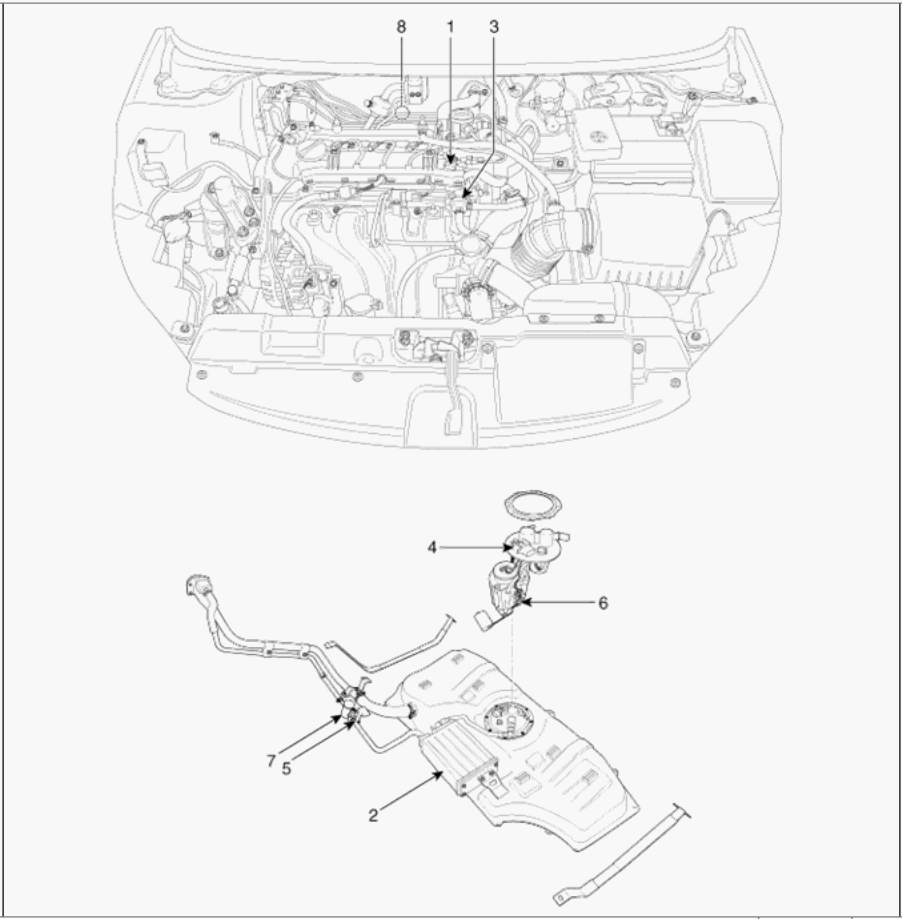

Fig 1: Locating Emission Control System Components

Courtesy of HYUNDAI MOTOR AMERICA

1. PCV valve	5. Canister close valve (CCV)
2. Canister	6. Fuel level sensor (FLS)
3. Purge control solenoid valve (PCSV)	7. Fuel tank air filter
4. Fuel tank pressure sensor (FTPS)	8. Catalytic converter

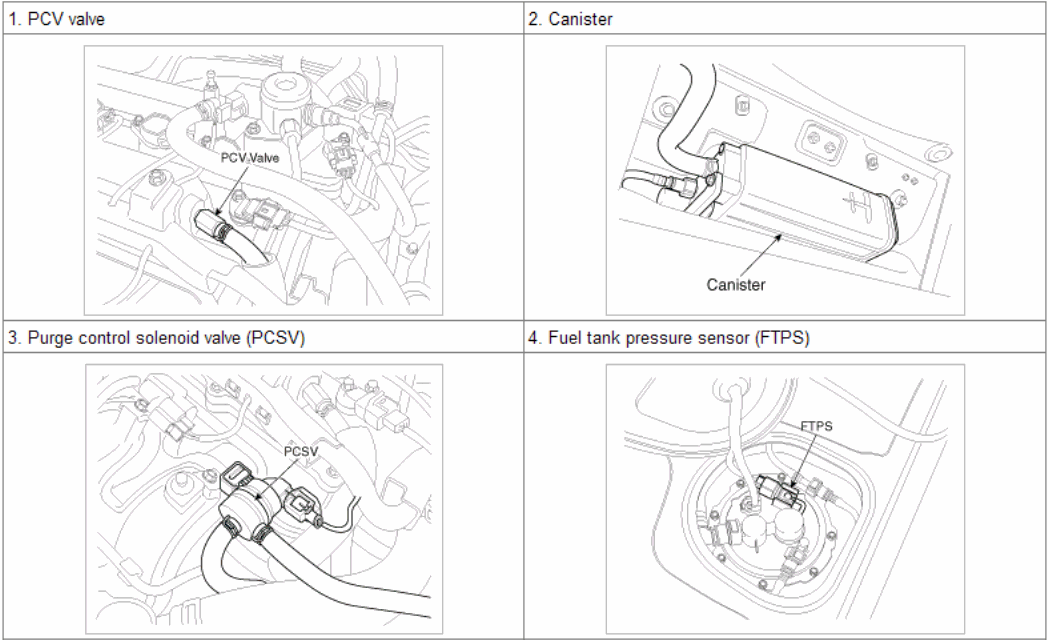

Fig 2: Identifying Emission Control System Components (1 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

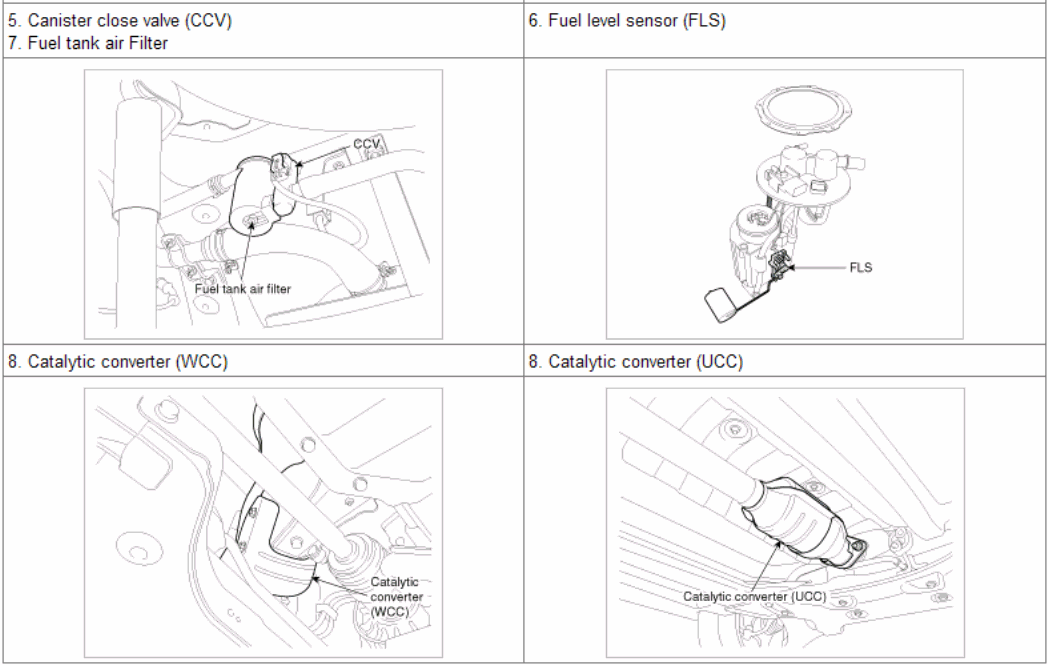

Fig 3: Identifying Emission Control System Components (2 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA
