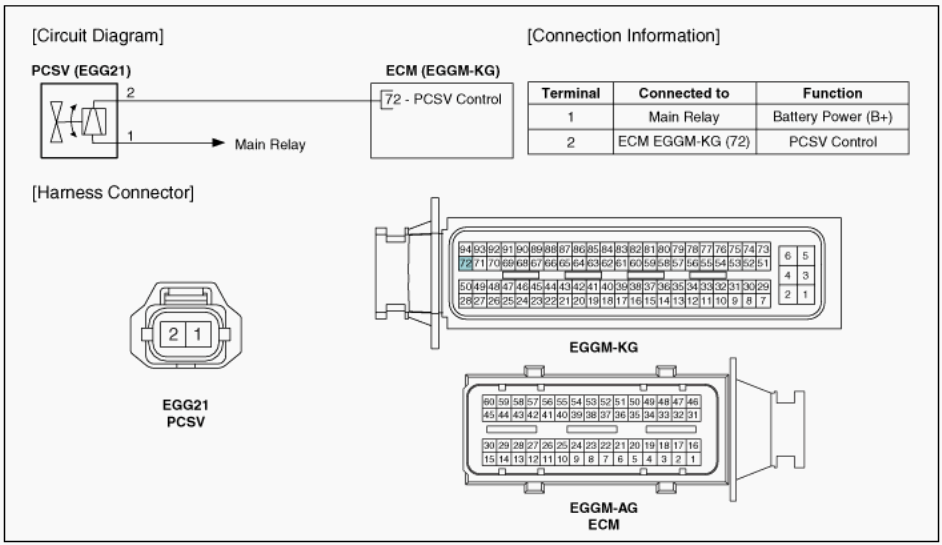

Home › Hyundai › 2012 › Accent GLS, Automatic Trans › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System › Purge Control Solenoid Valve (PCSV) › Schematic Diagrams › Circuit Diagram › (M/T)
