Repair Procedures: Removal

  1. Release the residual pressure in fuel line (Refer to "RELEASE RESIDUAL PRESSURE IN FUEL LINE " in this group).
  2. Remove the rear seat [LH] (Refer to REAR SEAT ).
  3. Remove the fuel pump service cover (A).
    Fig 1: Identifying Fuel Pump Service Cover
    G08804517Courtesy of HYUNDAI MOTOR AMERICA
  4. Disconnect the fuel pump connector (A).
  5. Disconnect the fuel feed tube quick connector (B).
  6. Disconnect the fuel tank pressure sensor connector (C).
  7. Disconnect the vapor tube quick-connector (D).
  8. Remove the plate cover (E) after removing the installation bolts, and then remove the fuel pump from the fuel tank.

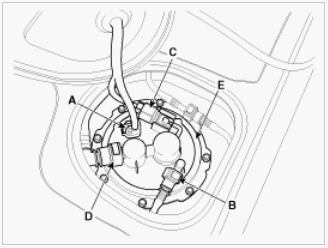

    Fig 2: Identifying Fuel Pump Components
    G08804523Courtesy of HYUNDAI MOTOR AMERICA
    Fig 3: Identifying Fuel Pump And Plate Cover
    G08804524Courtesy of HYUNDAI MOTOR AMERICA
