Diagnostic Circuit Diagram

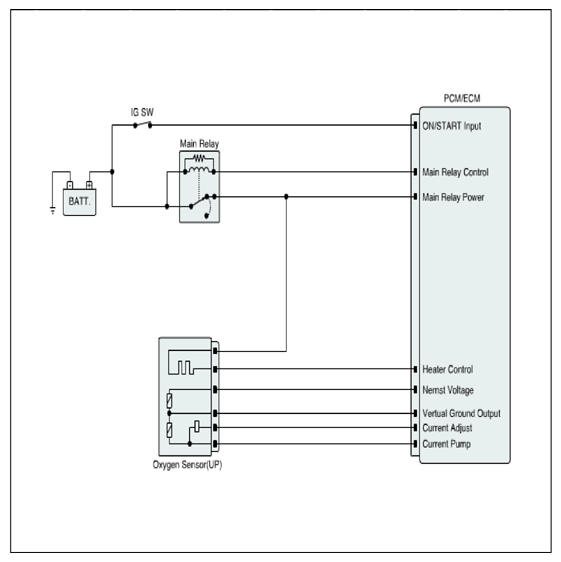

Fig 1: Oxygen Sensor (UP) Diagnostic Circuit Diagram
G08802154Courtesy of HYUNDAI MOTOR AMERICA

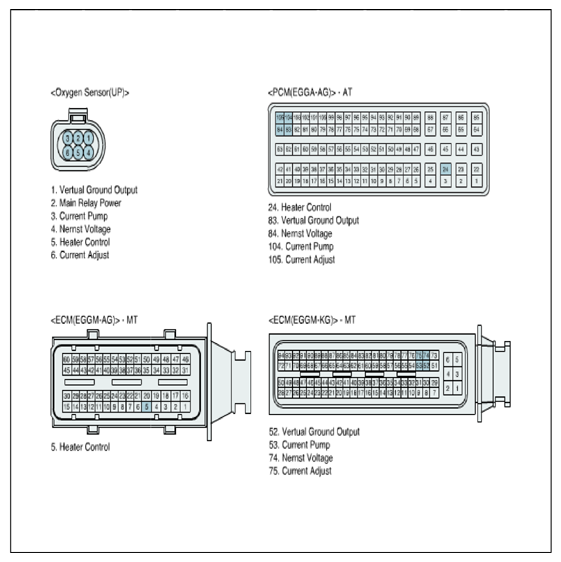

Fig 2: Identifying Oxygen Sensor (UP), PCM And ECM Connector Terminals
G08802155Courtesy of HYUNDAI MOTOR AMERICA
