Diagnostic Circuit Diagram

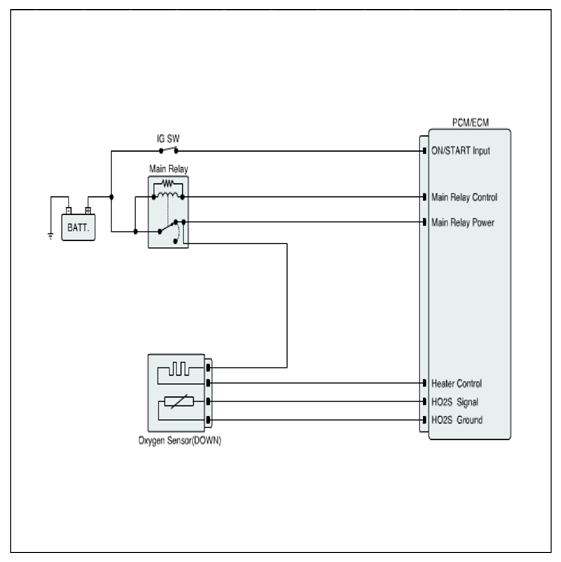

Fig 1: Oxygen Sensor (Down) Diagnostic Circuit Diagram
G08802202Courtesy of HYUNDAI MOTOR AMERICA

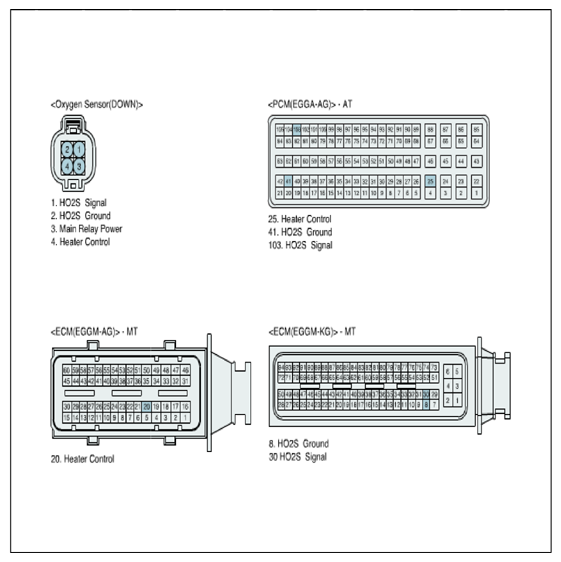

Fig 2: Identifying Oxygen Sensor (Down), PCM And ECM Connector Terminals
G08802203Courtesy of HYUNDAI MOTOR AMERICA
