Repair procedures: Installation

Apply tire soap or lubrication to the top and bottom tire beads.

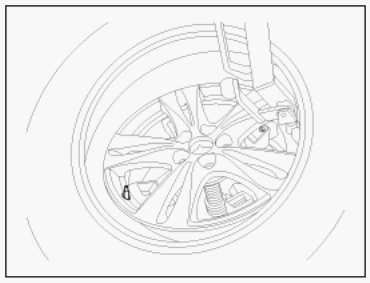

Fig 1: Applying Tire Soap
Courtesy of HYUNDAI MOTOR AMERICA
To fit the bottom bead, position the valve at the 5 o'clock position relative to the head on the tire changing machine.

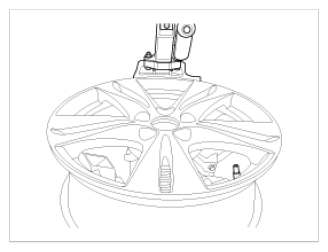

Fig 2: Positioning Valve
Courtesy of HYUNDAI MOTOR AMERICA
Place the tire on the rim so the bottom bead touches the edge of the rim after the valve (6 o'clock). Rotate the rim clockwise, and push down on the tire at the 3 o'clock position to fit bottom bead.

Fig 3: Fitting Bottom Bead
Courtesy of HYUNDAI MOTOR AMERICA
After bottom bead is on tire, rotate the rim until the valve is at the 5 o'clock position relative to the head on the tire changing machine. Push down on the tire at the 3 o'clock position and rotate the rim clockwise to fit the top bead.

Fig 4: Fitting Top Bead
Courtesy of HYUNDAI MOTOR AMERICA
Inflate the tire until both beads seat.
Tire pressure: 2.2kg/cm² (32psi)

Fig 5: Inflating Tire
Courtesy of HYUNDAI MOTOR AMERICA
