Components and Components Location: Components: Notes

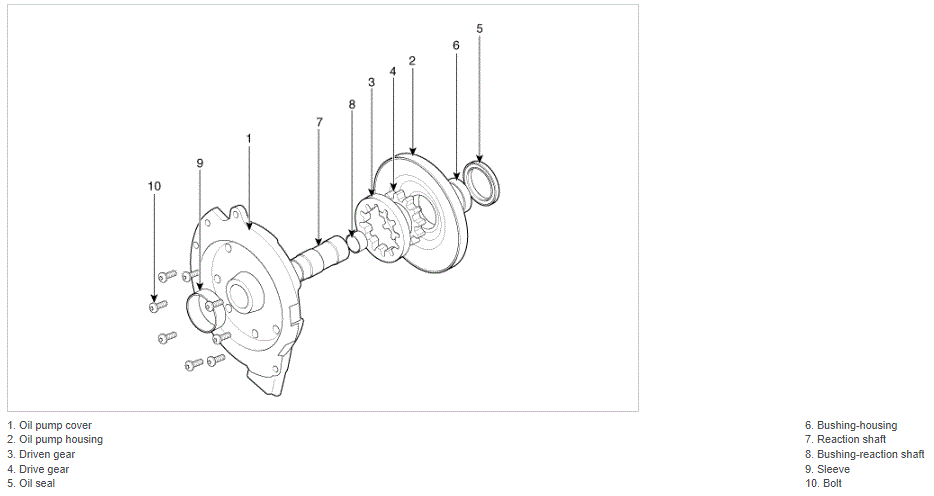

Fig 1: Identifying Hydraulic System Oil Pump Components
G08804647Courtesy of HYUNDAI MOTOR AMERICA
