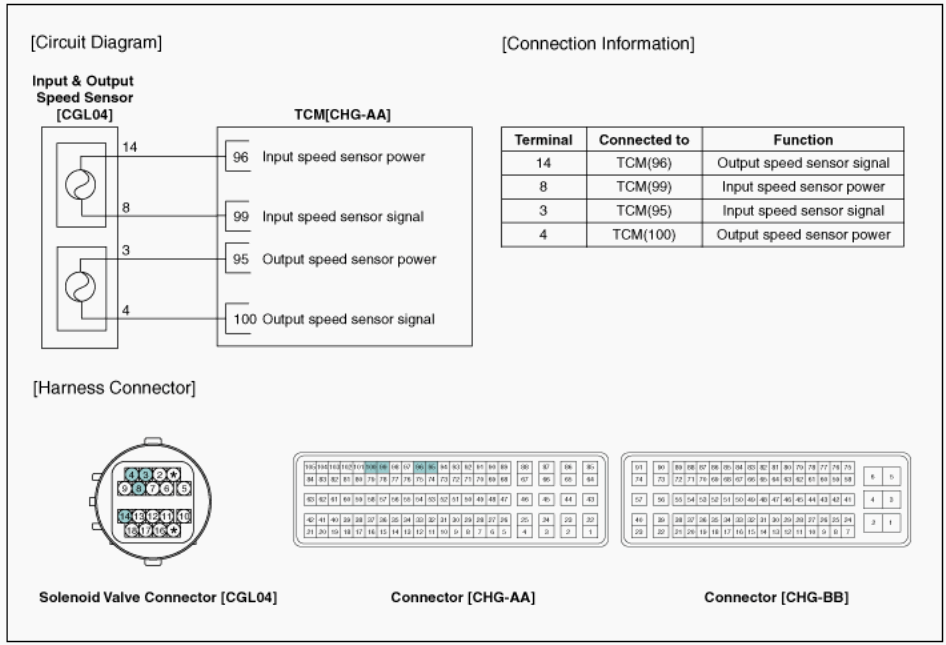

Home › Hyundai › 2012 › Accent GLS, Automatic Trans › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System › Input Speed Sensor › Schematic Diagrams › Circuit Diagram
