Components and Components Location: Components

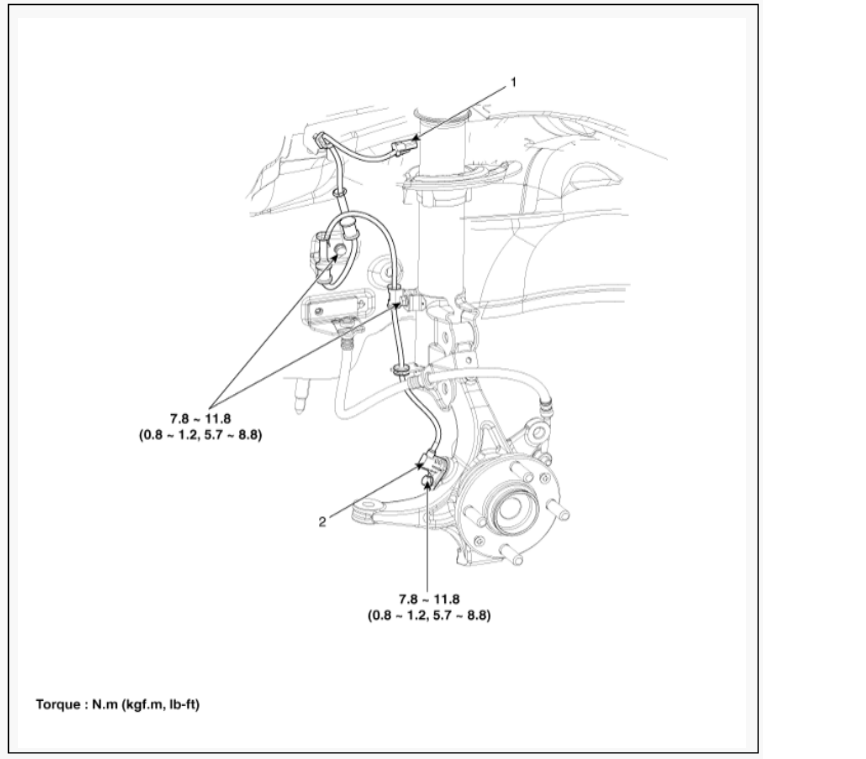

Fig 1: Front Wheel Speed Sensor And Connector With Torque Specifications

Courtesy of HYUNDAI MOTOR AMERICA

1. Front wheel speed sensor connector

2. Front wheel speed sensor
