Components and Components Location: Components

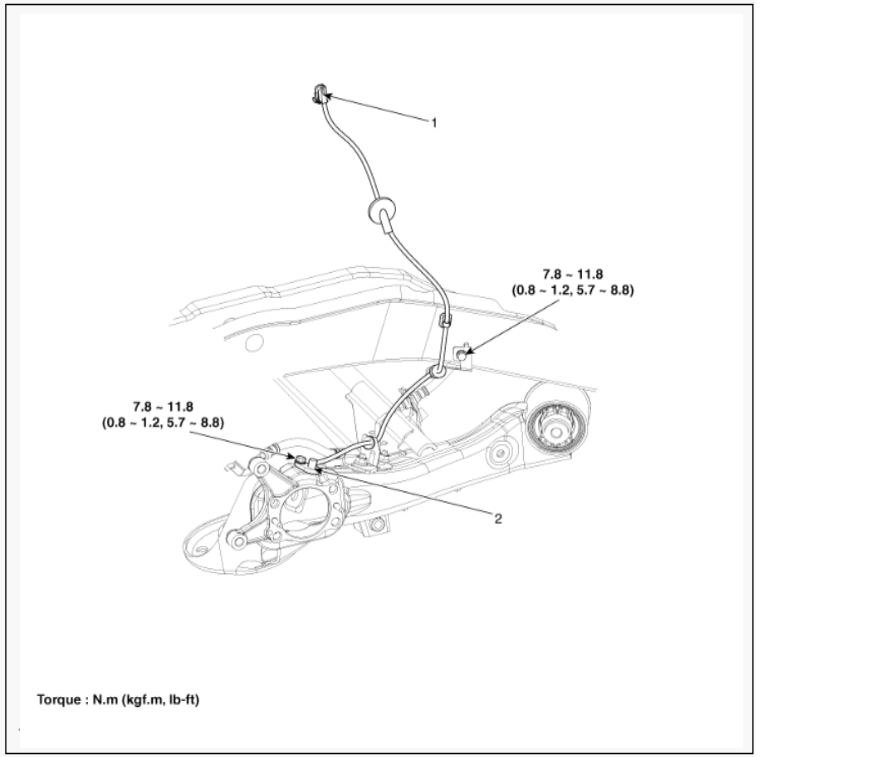

Fig 1: Rear Wheel Speed Sensor And Connector With Torque Specifications

Courtesy of HYUNDAI MOTOR AMERICA

1. Rear wheel speed sensor connector

2. Rear wheel speed sensor
