Repair Procedures: Removal
- Disconnect the negative (-) battery terminal.
- Remove the crash pad lower panel.
(Refer to the "CRASH PAD ")

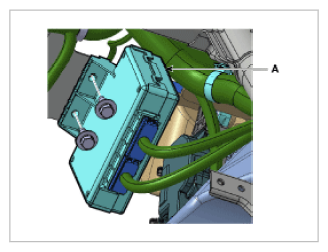

NOTE: Take care not to scratch the crash pad and related parts. - Disconnect the connectors and remove the BCM (A) after loosening 2 bolts.
