ABS Control Module Connector End View
ABS Control Module Connector End View

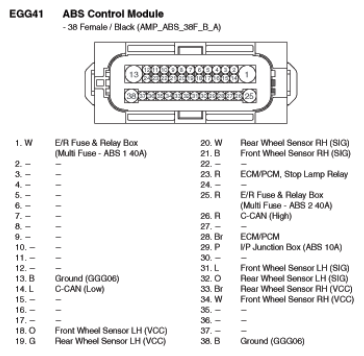

Fig 1: ABS Control Module Connector End View (EGG41)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
