Body Control Module (BCM)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

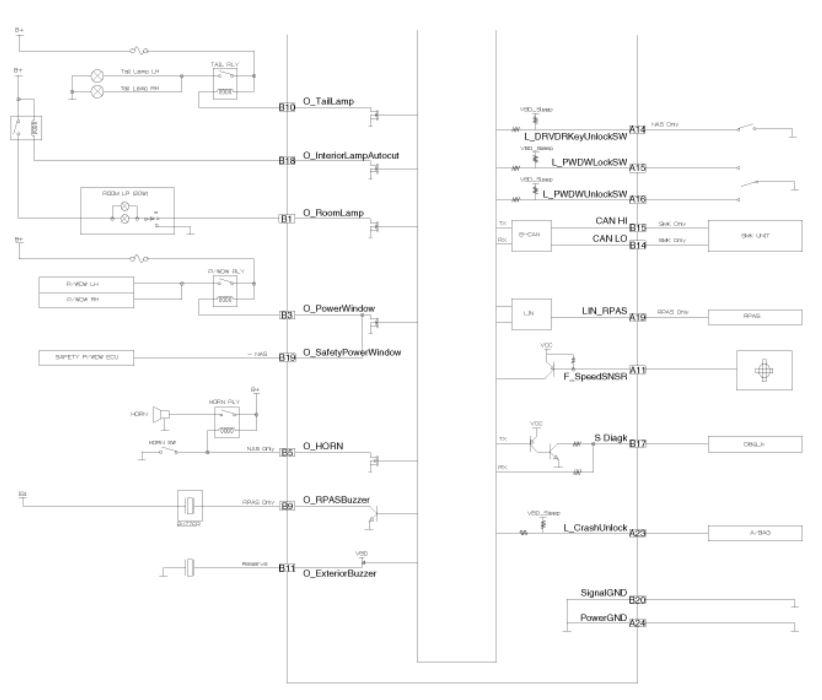

Fig 1: Body Control Module - Circuit Diagram (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

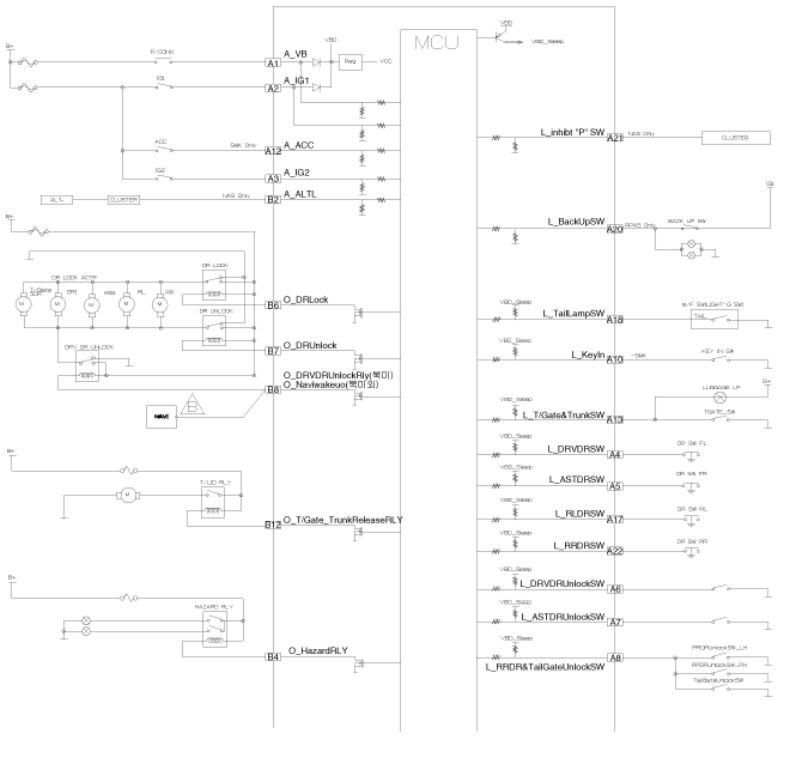

Fig 2: Body Control Module - Circuit Diagram (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
For wiring diagram information, refer to
BODY CONTROL MODULES
for 2012 models, or refer to
BODY CONTROL MODULES
for 2013 models.
