Components And Components Location: Components

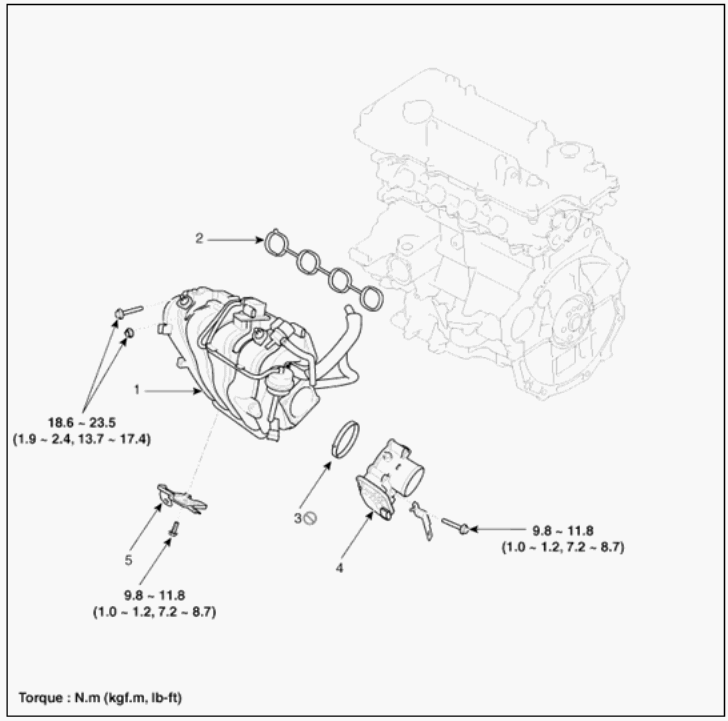

Fig 1: Intake Manifold Replacement Components With Torque Specifications

Courtesy of HYUNDAI MOTOR AMERICA

1. Intake manifold	4. Electronic throttle body
2. Intake manifold gasket	5. Bracket
3. Electronic throttle body gasket
