Front Wiper Intermittent Control

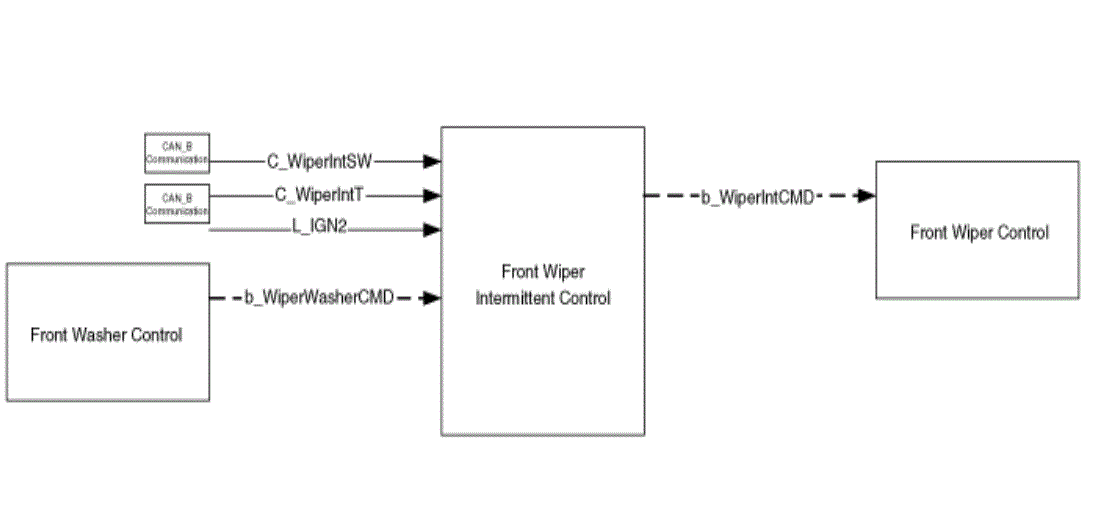

Fig 1: Front Wiper Intermittent Control System Function Diagram

Courtesy of HYUNDAI MOTOR AMERICA

Function	Characteristics	Name
Function	Characteristics	Signal Label	Spec. Designation
Input	Logic	L_IGN2	Ignition 2 Signal
	CAN_B Communication	C_WiperIntSW	Wiper Intmt Switch from MFSW
	CAN_B Communication	C_WiperIntT	Wiper Intmt T Value from MFSW
	Internal	b_WiperWasherCMD	Front Wiper Washer Control Command
Output	Internal	b_WiperIntCMD	Wiper Intermittent Output Command
