AVN Monitor

Remove the center fascia panel.
(Refer to "AVN HEAD UNIT ")

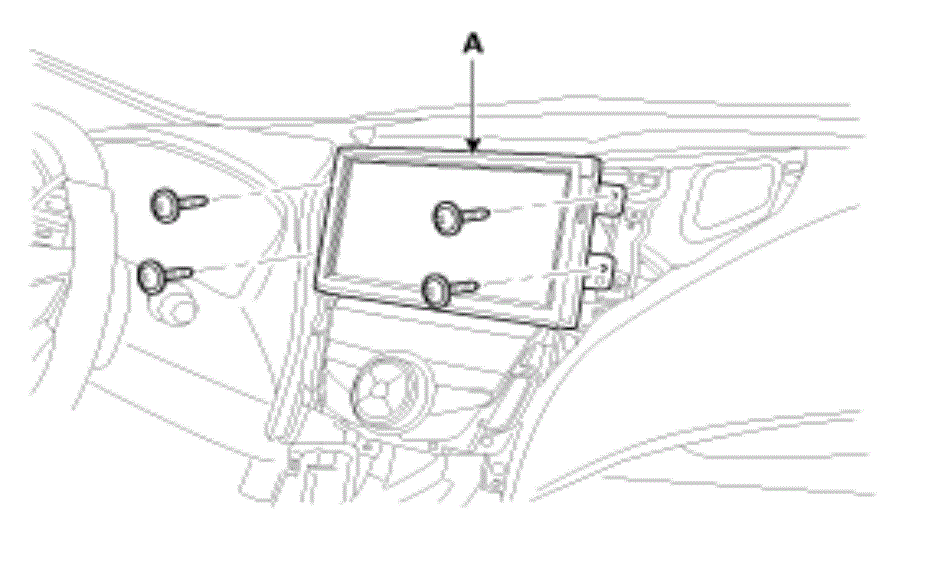

Remove the monitor (A) after loosening the mounting screws.

Fig 1: Identifying AVN Monitor And Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA

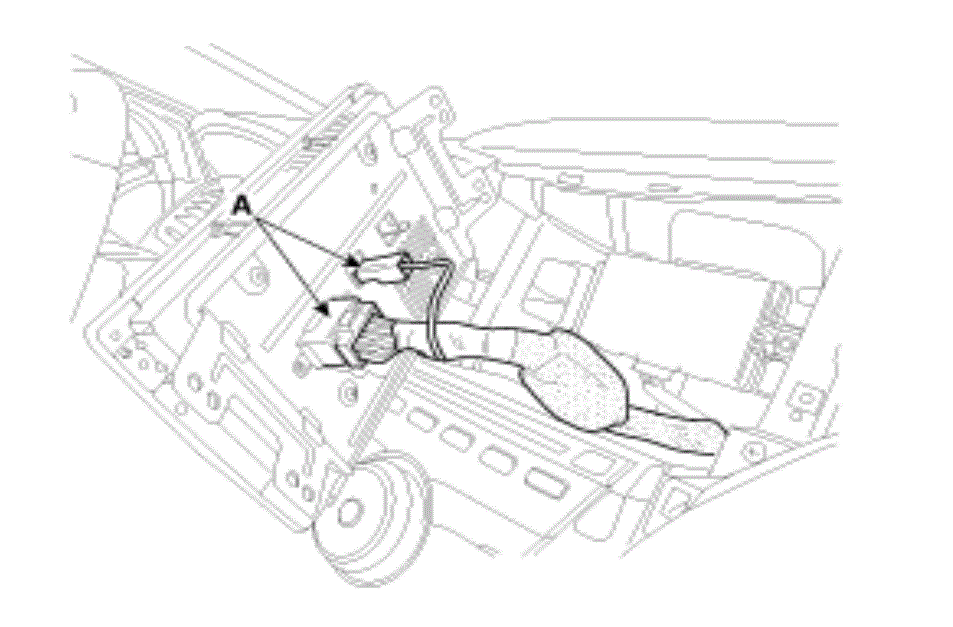

Remove the AVN monitor connectors and cables (A).

Fig 2: Identifying AVN Monitor Connectors And Cables
Courtesy of HYUNDAI MOTOR AMERICA
