Repair Procedures: Removal

Remove the center fascia tray.
(Refer to "FLOOR CONSOLE ASSEMBLY ")

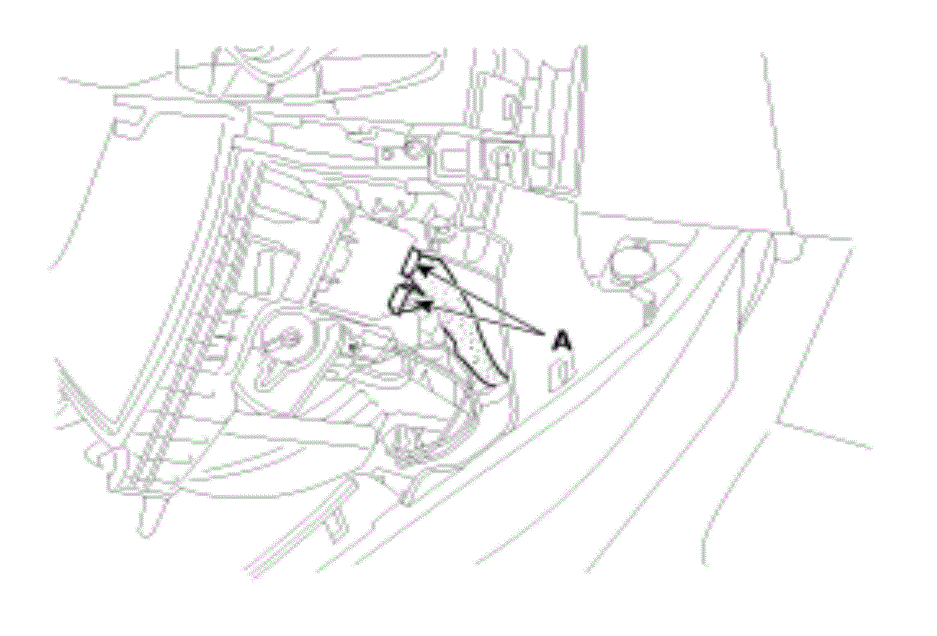

Disconnect the connectors (A) from center fascia tray.

Fig 1: Identifying Center Fascia Tray Connectors
Courtesy of HYUNDAI MOTOR AMERICA

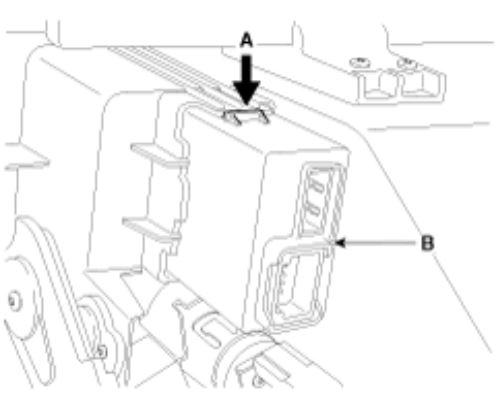

Remove the multimedia jack (B) from the console upper cover after releasing the fixed hooks (A).

Fig 2: Releasing Multimedia Jack Fixed Hooks
Courtesy of HYUNDAI MOTOR AMERICA
