Home › Hyundai › 2012 › Azera › Repair and Diagnosis › Accessories & Equipment › Exterior Lights › Auto Lighting Control System › Auto Light Sensor › Repair procedures › Removal

Repair procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the auto light sensor (A) from crash pad upper side by using screw (-) driver.

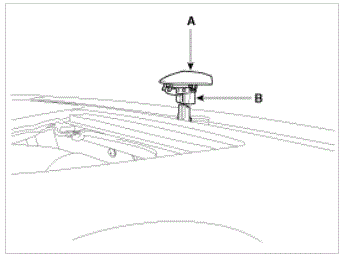

    Fig 1: Identifying Auto Light Sensor And Connector
    G08814611Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the auto light sensor connector (B).
