Trunk Antenna

Disconnect the negative (-) battery terminal.
Remove the trunk transverse trim.
(Refer to "TRUNK TRIM ")
Disconnect the trunk antenna connector (A) and remove the trunk antenna (B) after loosening screws (2EA).

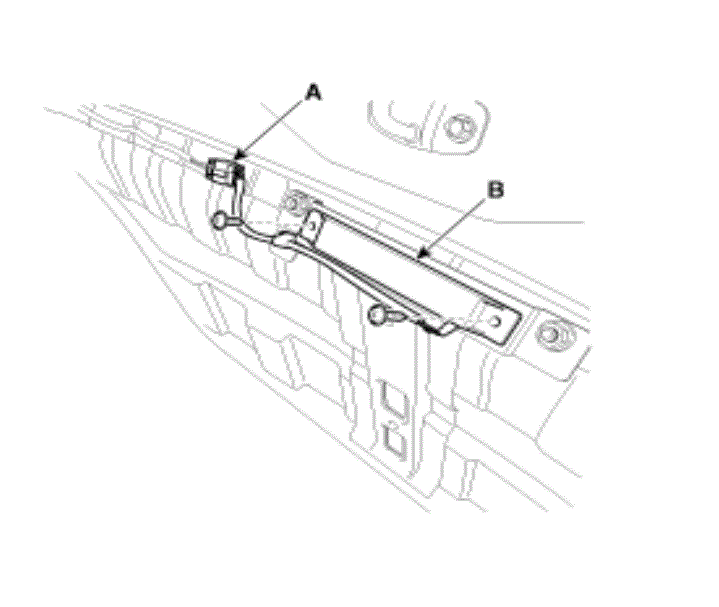

Fig 1: Identifying Trunk Antenna And Connector
Courtesy of HYUNDAI MOTOR AMERICA
