Front Body C
Front Body C

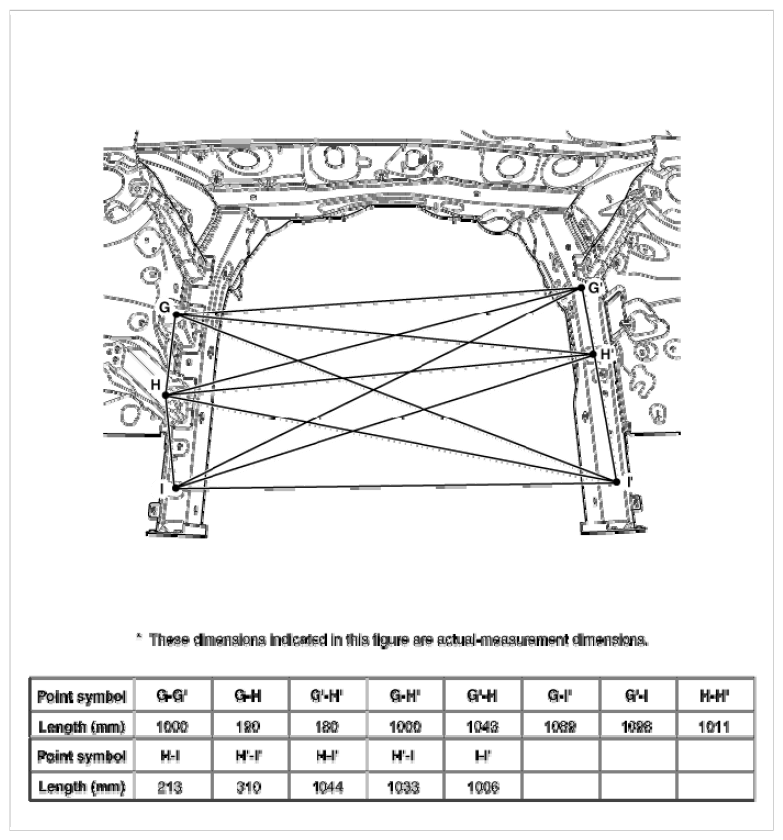

Fig 1: Identifying Front Body C Dimensions
Courtesy of HYUNDAI MOTOR AMERICA

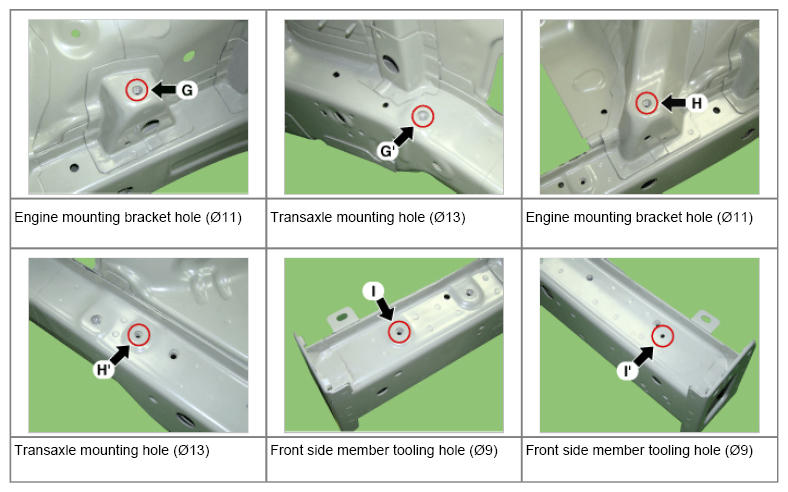

Fig 2: Locating Mounting Holes On Front Body C
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
