Interior A

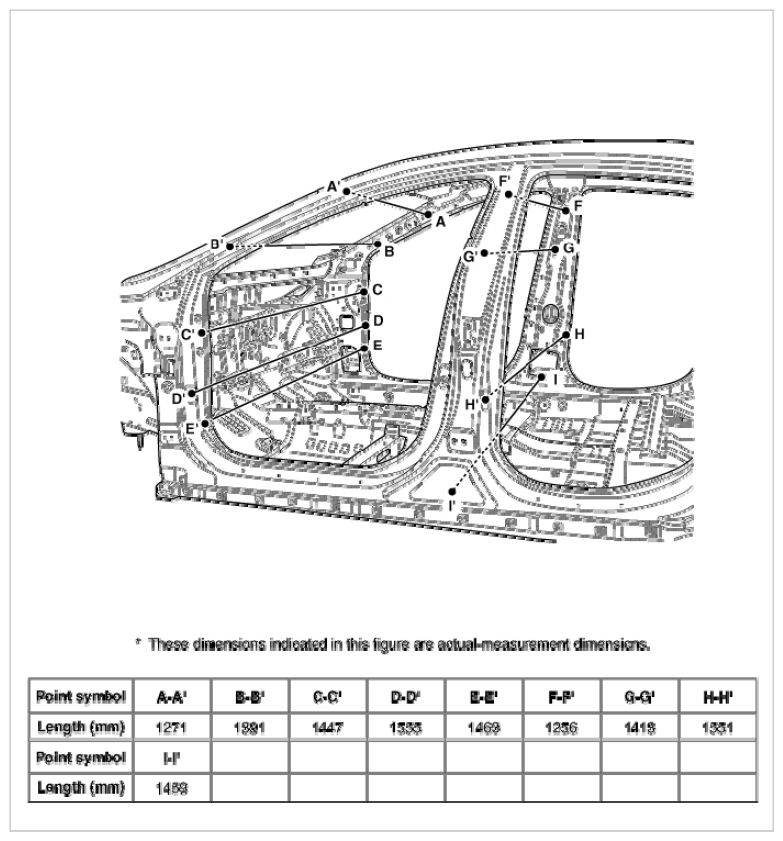

Fig 1: Identifying Interior A Dimensions
G08810503Courtesy of HYUNDAI MOTOR AMERICA

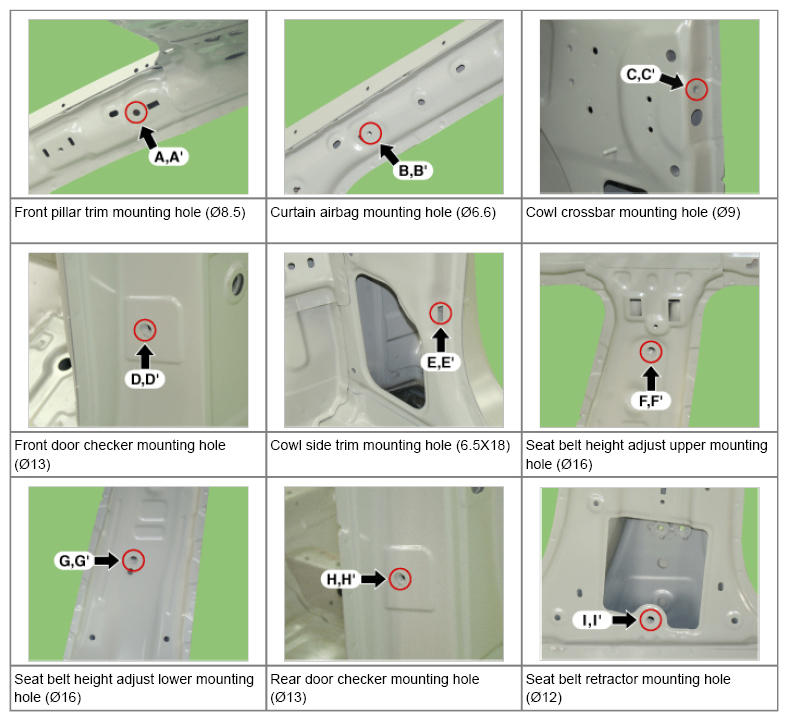

Fig 2: Locating Mounting Holes On Interior A
G08810504Courtesy of HYUNDAI MOTOR AMERICA
