Body Repair

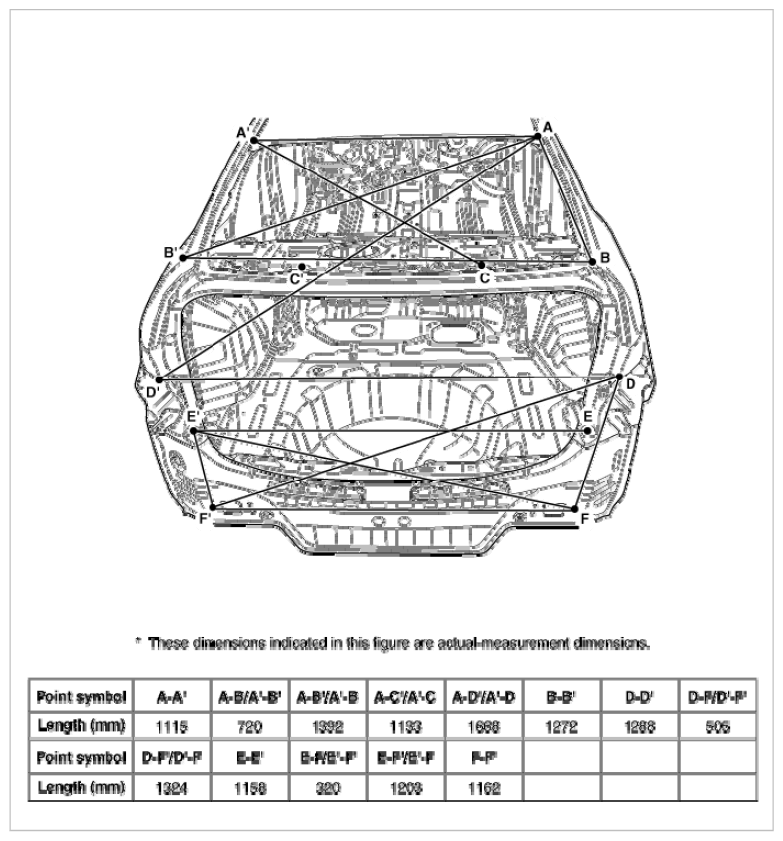

Fig 1: Identifying Rear Body Dimensions
G08810511Courtesy of HYUNDAI MOTOR AMERICA

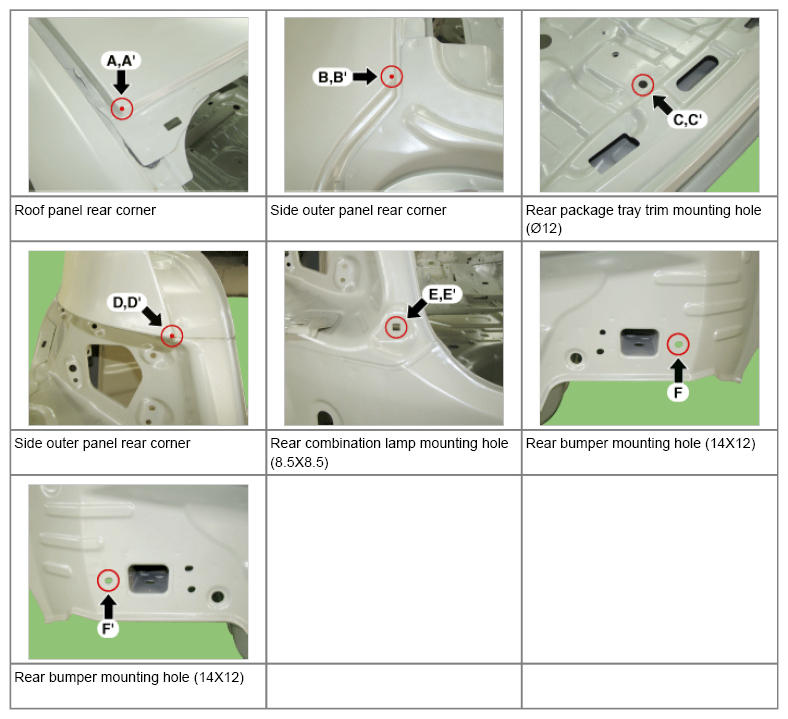

Fig 2: Locating Mounting Holes On Rear Body
G08810512Courtesy of HYUNDAI MOTOR AMERICA
