Home › Hyundai › 2012 › Azera › Repair and Diagnosis › Body & Frame › Mirrors › Power Door Mirrors › Power Out Side Mirror Switch › Components and Components Location › Component

Components and Components Location: Component

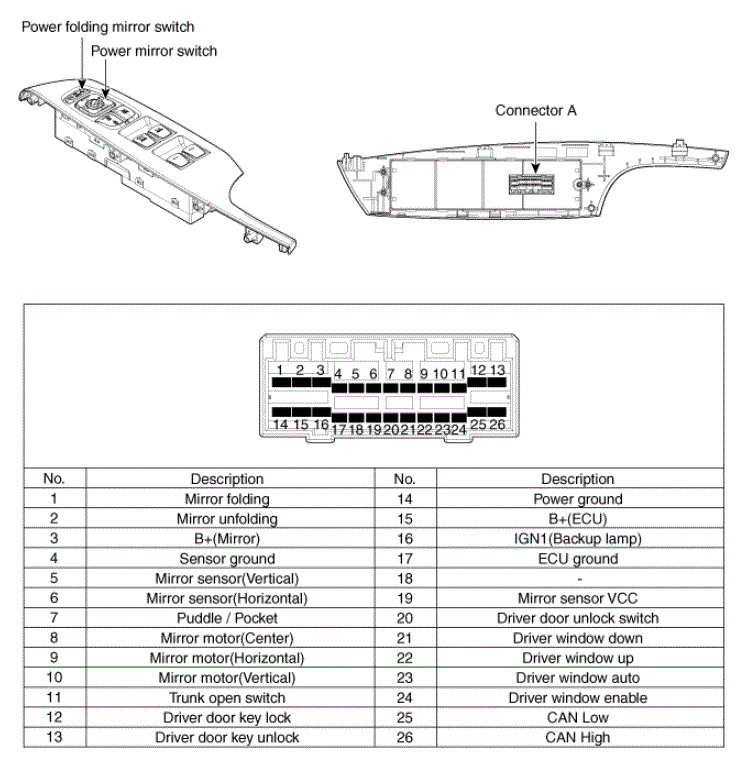

Fig 1: Power Mirror Switch Connectors
G08814407Courtesy of HYUNDAI MOTOR AMERICA
