Repair Procedures: Replacement

  1. Open the movable glass fully.
  2. Remove the folding cover (A).

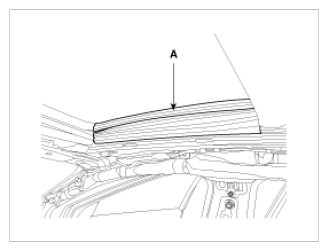

    Fig 1: Identifying Folding Cover
    G08810623Courtesy of HYUNDAI MOTOR AMERICA
  3. After loosening the mounting screws, then remove the movable glass (A).
    CAUTION:
    • Do not damage the screws.

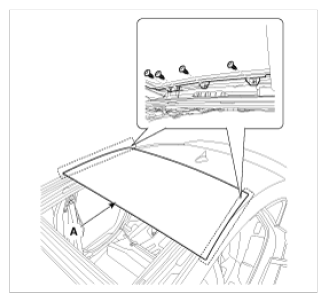

    Fig 2: Identifying Movable Glass With Mounting Screws
    G08810624Courtesy of HYUNDAI MOTOR AMERICA
  4. Installation is the reverse of removal.
