Components and Components Location: Components

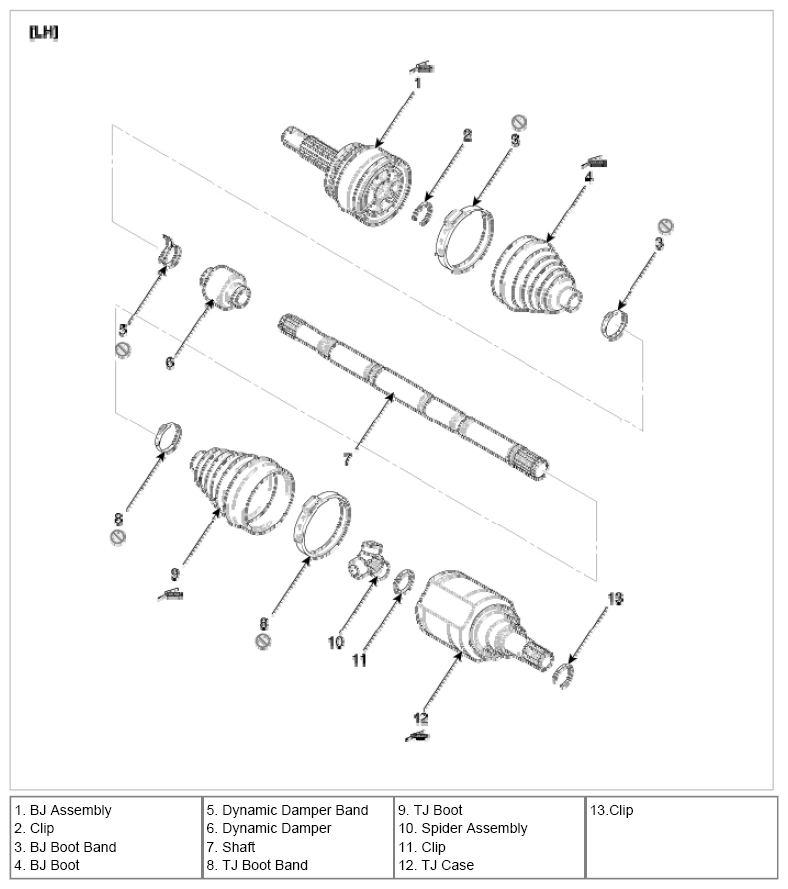

Fig 1: Identifying Driveshaft Components (LH)

Courtesy of HYUNDAI MOTOR AMERICA

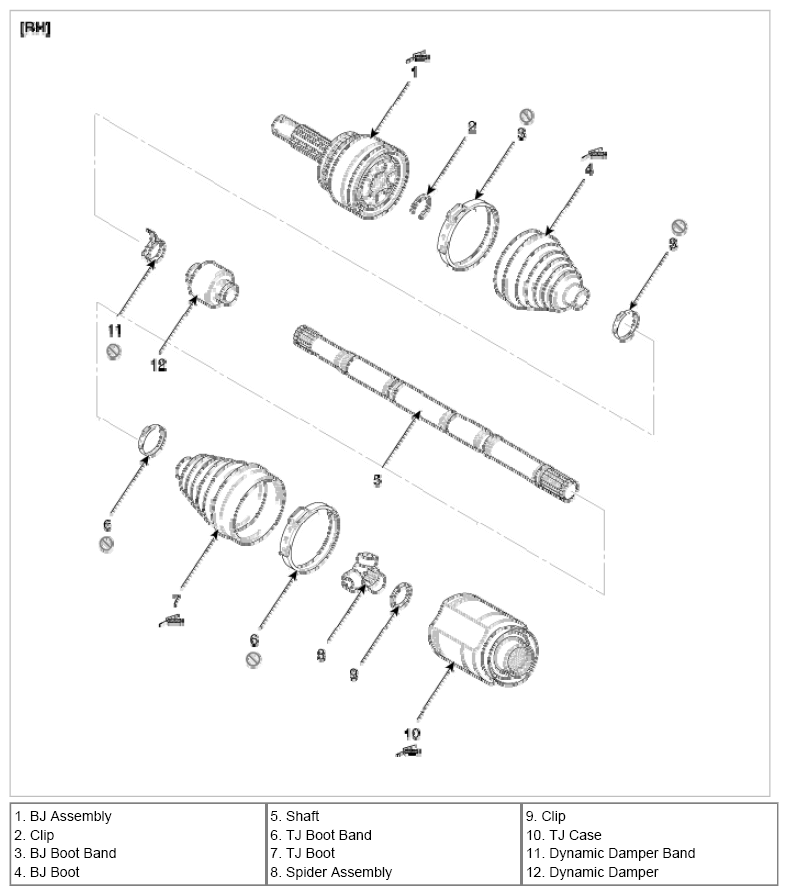

Fig 2: Identifying Driveshaft Components (RH)

Courtesy of HYUNDAI MOTOR AMERICA
