ABS Control Module Connector End View (E02)

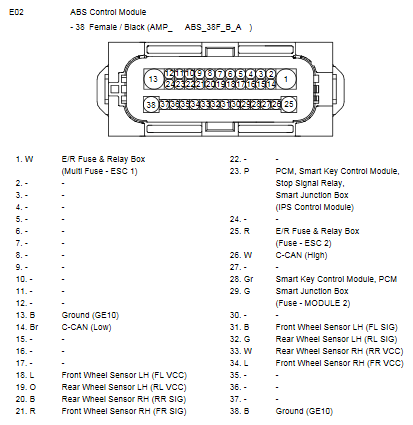

Fig 1: ABS Control Module Connector End View (E02)
G10774948Courtesy of HYUNDAI MOTOR AMERICA
