A/C Control Module (Auto) Connector End View (M03-A)

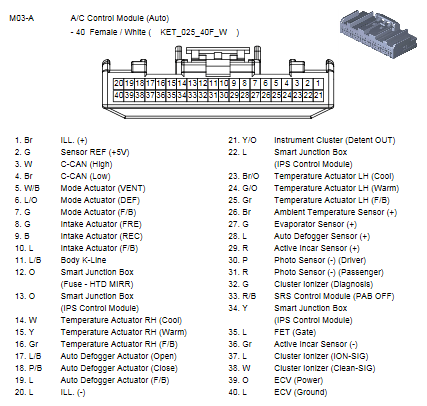

Fig 1: A/C Control Module (Auto) Connector End View (M03-A)
G10774873Courtesy of HYUNDAI MOTOR AMERICA
