Repair Procedures: Replacement

CAUTION:

When prying with a flat-tip screwdriver, wrap it with protective tape and apply protective tape around the related parts to prevent damage.
Take care not to scratch the body surface.
Put on gloves to protect your hands.

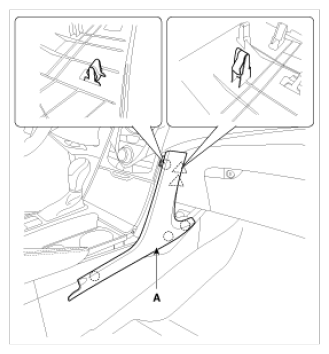

Using a screwdriver or remover, remove the center facia side garnish (A).

Fig 1: Identifying Center Facia Side Garnish
Courtesy of HYUNDAI MOTOR AMERICA

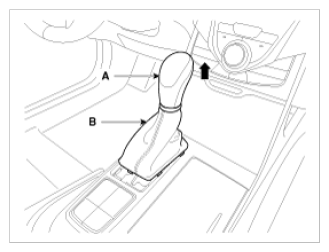

Remove the gear boots (B) and gear knob (A).

Fig 2: Removing Gear Boots And Knob
Courtesy of HYUNDAI MOTOR AMERICA

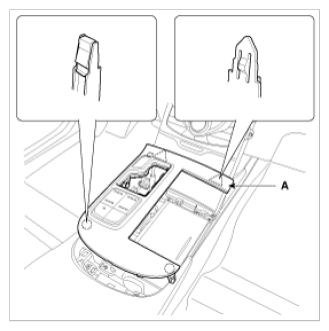

Using a screwdriver or remover, remove the console upper tray complete (A).

Fig 3: Removing Console Upper Tray Complete
Courtesy of HYUNDAI MOTOR AMERICA

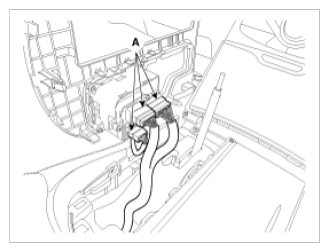

Disconnect the connectors (A).

Fig 4: Identifying Console Upper Tray Connector
Courtesy of HYUNDAI MOTOR AMERICA

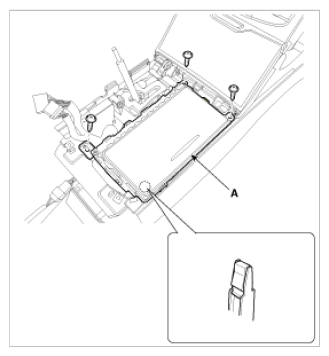

After loosening the mounting screws, then remove the cup holder tray (A).

Fig 5: Identifying Cup Holder Tray
Courtesy of HYUNDAI MOTOR AMERICA

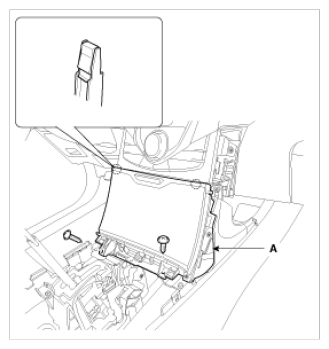

After loosening the mounting screws, then remove the center fascia tray (A).

Fig 6: Identifying Center Fascia Tray
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connectors (A).

Fig 7: Identifying Center Fascia Tray Connector
Courtesy of HYUNDAI MOTOR AMERICA

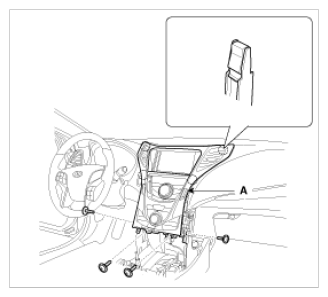

After loosening the mounting screws, then remove the center fascia panel (A).

Fig 8: Identifying Center Fascia Panel With Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA

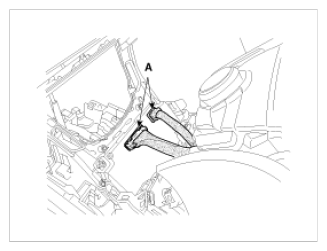

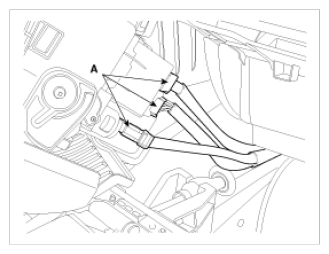

Disconnect the connectors (A).

Fig 9: Identifying Center Fascia Panel Connector
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- Make sure the connector are connected in properly.
- Replace any damage clips.
