Repair Procedures: Replacement

CAUTION:

When prying with a flat-tip screwdriver, wrap it with protective tape and apply protective tape around the related parts to prevent damage.
Take care not to scratch the body surface.
Put on gloves to protect your hands.

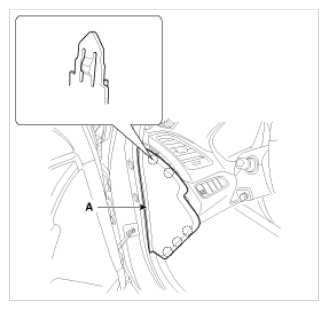

Using a screwdriver or remover, remove the crash pad side cover (A).

Fig 1: Identifying Crash Pad Side Cover
Courtesy of HYUNDAI MOTOR AMERICA

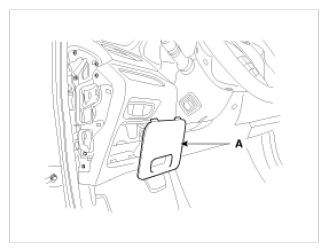

Using a screwdriver or remover, remove the fuse box cover (A).

Fig 2: Identifying Fuse Box Cover
Courtesy of HYUNDAI MOTOR AMERICA

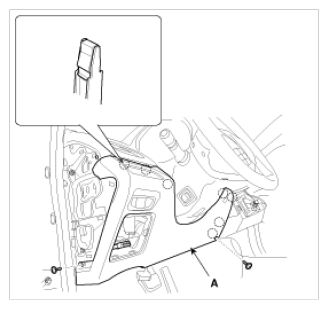

After loosening the mounting screws, then remove the crash pad lower panel (A).

Fig 3: Identifying Crash Pad Lower Panel With Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA

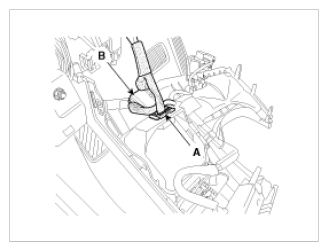

Disconnect the diagnosis connector (A) and connector (B).

Fig 4: Identifying Diagnosis Connector
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- Make sure the connector are connected in properly.
- Replace any damaged clips.
