Repair Procedures: Replacement

CAUTION:

When prying with a flat-tip screwdriver wrap it with protective tape and apply protective tape around the related parts to prevent damage.
Take care not to scratch the body surface.
Put on gloves to protect your hands.

After loosening the mounting screws, then remove the steering column shroud panel (A).

Fig 1: Identifying Steering Column Shroud Panel With Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connector (A).

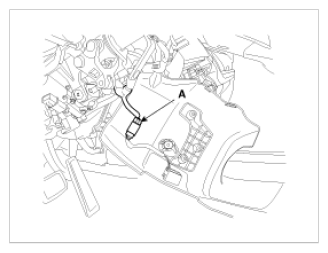

Fig 2: Identifying Steering Column Shroud Panel Connector
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- Make sure the connector are connected in properly.
- Replace any damaged clips.
