Components and Components Location: Components

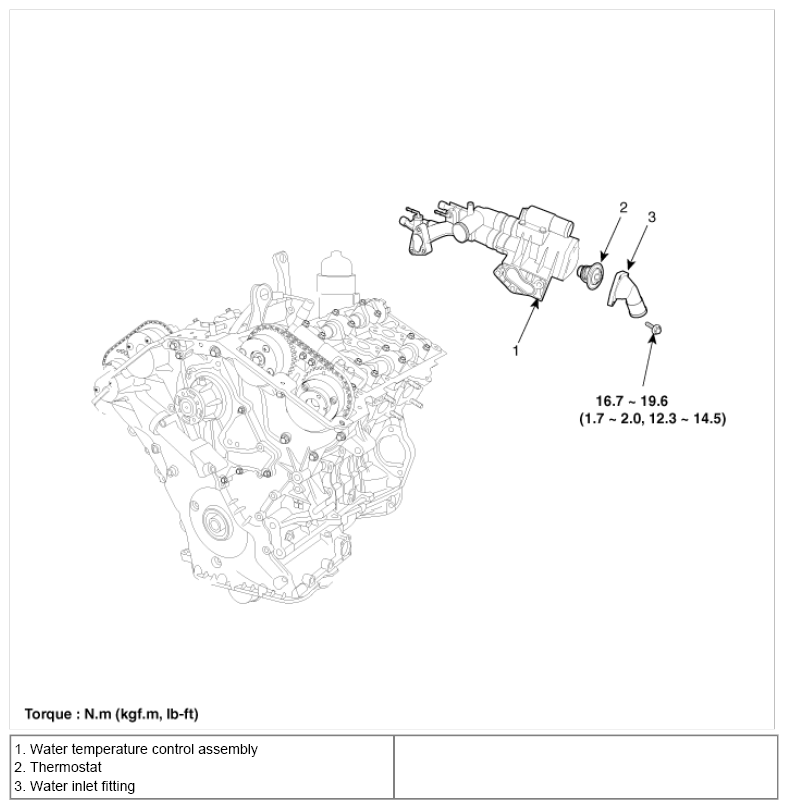

Fig 1: Water Temperature Control Assembly, Thermostat, Water Inlet Fitting With Torque Specifications
G08809366Courtesy of HYUNDAI MOTOR AMERICA
