Repair Procedures: Removal

  1. Drain the coolant.

    (Refer to "COOLANT ")

  2. Remove the drive belt.

    (Refer to "DRIVE BELT ")

  3. Remove the water pump pulley (A).

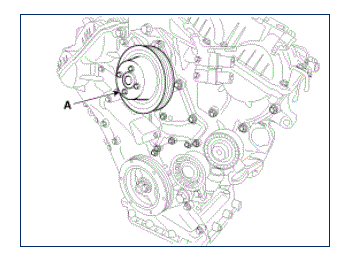

    Fig 1: Identifying Water Pump Pulley
    G08809359Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the water pump (A) and gaskets (B).

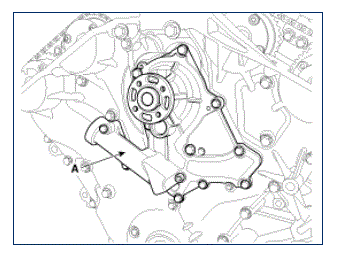

    Fig 2: Identifying Water Pump
    G08809360Courtesy of HYUNDAI MOTOR AMERICA

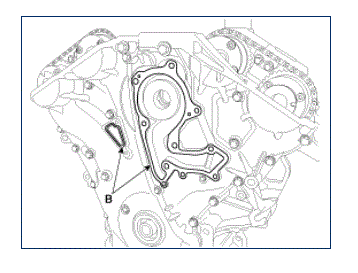

    Fig 3: Identifying Gaskets
    G08809361Courtesy of HYUNDAI MOTOR AMERICA
